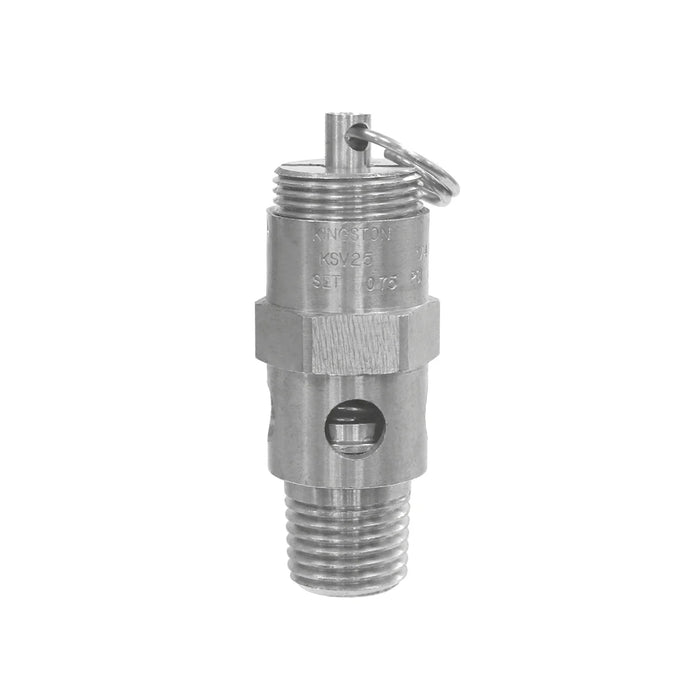

SVI INTERNATIONAL FK-KSV25-CR-125 1/8" Soft Seat Safety Valve - Stainless

SKU FK-KSV25-CR-125
Sold out
Original price $0.00 - Original price $0.00
Original price
$0.00
$0.00 - $0.00
Current price $0.00

1/8" Soft Seat Safety Valve - Stainless


Low Profile Safety Valve

Set pressure range 25 to 450 PSI (specify PSI when ordering—increments of 5 psi only).

ASME Section VIII, Division I / National Board Certified. High Capacity Flow Rates.

Silicone Disc is standard—For other options, Contact SVI today.


The Kingston Valve Model KSV25 ASME Code Low Profile Safety Valve is an ASME Code Certified, precision-machined valve, designed to API 527 Seat Tightness Standard. Compact in size yet providing high flow capacities, the Kingston Model KSV10 ASME Code Low Profile Safety Valve has been designed with the small air system in mind. Stainless Steel construction and a resilient silicone disc provides a bubble-tight seal below reseating pressure. Bodies are stamped with both the UV and NB symbols.

STYLE: Vent to Atmosphere
SIZE:
Height – Dim. A
Hex – Dim. B 1/8″ NPT Inlet (Also available in 1/4″ and 3/8″)
1.89″ Tall
0.687″ Hex
PRESSURE RANGE: 25–450 psi (specify; increments of 5 psi)
MATERIAL: Stainless Stee (Also available in Brass)
SEAT TYPE: Soft Seat
ORIFICE AREA: 0.049 in²
NB RATED SLOPE: 0.726 SCFM/PSIA
OPTIONAL FEATURES: Contact SVI to request these options—
EPDM Disc, FKM, Fluoroelastomer Disc, O² Cleaning, Steam, Thread Sealant
CERTIFICATIONS: Canadian Registration Number (CRN),
National Board / AMSE Section VIII
SHIPPING WEIGHT: 1.4 oz.
APPLICATIONS: Air Compressors, Automotive, Food & Beverage Dispensing, Process Control Equipment
