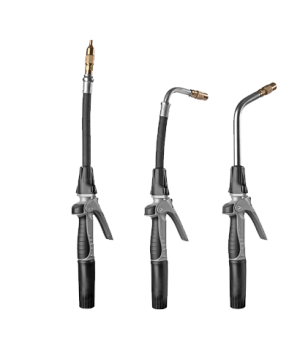

Samson CV11 Ser. Dispense Valve - Oil Ctrl Valve Form. 1/4 Turn Narrow No-drip 363 118

Samson control valves are used at the end of the hose assembly to dispense lubricants and antifreeze solutions.

Fluids Handled

• Synthetic and mineral based oil
• Gear Oil
• Hydraulic oil and fluids
• ATF
• Antifreeze solutions

• Extensively and rigorously field tested; reliable performance.
• Aluminum body with light weight ergonomic design.
• Cam and piston valve design for minimum flow resistance.
• Large inlet swivel and inlet filter with large screen surface.
• Swivel and outlet covers.
• Safety latch must be depressed before product can be dispensed.
• Trigger can be locked open for dispensing large volumes.
• Wide selection of outlets available.

Maximum Free Flow Rate: 11 gal/min (40 l/min)

Maximum Working Pressure: 1,450 psi (100 bar)

Fluid Inlet: 1/2" NPTF

Fluid Outlet: 1/2" NPTF

Wetted Materials

Aluminium, Zinc Plated Steel, TPU, Polyamide
