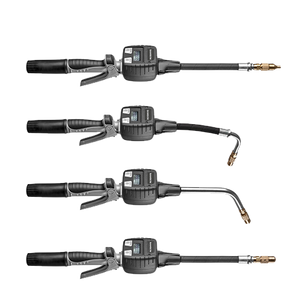

Samsons EC8 Series Digital Dispense Valve

Samson digital control valves are used at the end of the hose assembly for measured dispensing lubricants and anitfreeze solutions.

Fluids Handled

• Synthetic and mineral based oil
• Gear Oil
• Hydraulic oil and fluids
• ATF
• Antifreeze solutions

• Extensively and rigorously field tested. Reliable performance.
• High precision machined measuring chamber with tight tolerances, quality gears and stainless steel shafts eliminate the need of calibration to adjust for fluid viscosity.
• Sealed battery compartment and isolated electronic register for extended life.
• Easy to read large character display, with batch, trip (resettable totalizer) and totalizer functions.
• Rough TPE boot surrounds the entire meter for even greater durability.
• Replaceable AAA batteries.

Maximum Free Flow Rate

8 gal/min (30 l/min)

Maximum Working Pressure

1,450 psi (100 bar)

Fluid Inlet

1/2" NPTF

Fluid Outlet

1/2" NPTF

Accuracy

+/- 0.5%

Power Source

2x "AAA" 1.5 Batteries

Wetted Materials

Acetal, Aluminium, Stainless Steel, NBR, Zinc Plated Steel, TPU, Polyamide
