Samson 506 Series Low Pressure for air / water freeshipping - Empire Lube Equipment
by Samson

Samson 506 Series Low Pressure for air / water 506 122

SKU Samson 506 122 50' x 1/2" NPTM
$544.95 - $544.95
$544.95
$544.95 - $544.95
$544.95

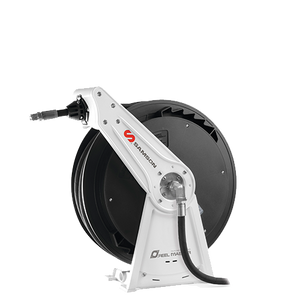

Aluminum base and arms with composite spool hose reel. Reel can handle up to 50' x 1/2" hose. comes with the hose for air/ water

506 122 - 50' x 1/2" NPT(M)

Single Arm Hose Reel 50ft 1/2 inch NPT - Buna S

    Aluminum and composite material single arm hose reel for air water, oil, antifreeze, windshield wash fluid, high pressure hot and cold water, and grease with hose capacity up to 60 feet (18.25m) x 1/2" hose.
    Applications: Compressed air and low pressure water, windshield washer, and antifreeze.
Specifications:
  • Hose Length: 50 feet (15.2 m)
  • Hose Diameter I.D. - O.D.: 1/2 inch - 25/32 inch
  • Hose Outlet Thread: 1/2 inch NPT (M)
  • Inlet Thread: 1/2 inch NPT (M)
  • Hose Type: Buna S (SBR). Synthetic textile braid.
  • Hose Working Pressure: 300 PSI - (20 bar)
  • 32.8 lb



506121

Single Arm Hose Reel 50ft 3/8 inch NPT - Buna S

    Aluminum and composite material single arm hose reel for air water, oil, antifreeze, windshield wash fluid, high pressure hot and cold water, and grease with hose capacity up to 60 feet (18.25m) x 1/2" hose.
    Applications: Compressed air and low pressure wter, windshield washer, and antifreeze.
Specifications:
  • Hose Length: 50 feet
  • Hose Diameter I.D. - O.D.: 3/8 inch - 11/16 inch
  • Hose Outlet Thread: 3/8 inch NPT (M)
  • Inlet Thread: 1/2 inch NPT (M)
  • Hose Type: Buna S (SBR). Synthetic textile braid.
  • Hose Working Pressure: 300 PSI - (20 bar)
  • Net Weight: 31.3 lb



506101

Single Arm Hose Reel 30ft 3/8 inch NPT - Buna S

    Aluminum and composite material single arm hose reel for air water, oil, antifreeze, windshield wash fluid, high pressure hot and cold water, and grease with hose capacity up to 60 feet (18.25m) x 1/2" hose.
    Applications: Delivery of compressed air, low pressure water and fluids, and antifreeze
Specifications:
  • Hose Length: 30ft (9.1 m)
  • Hose Diameter I.D. - O.D: 3/8 inch - 11/16 inch
  • Hose Outlet Thread: 3/8 inch NPT (M)
  • Inlet Thread: 1/2 inch NPT (M)
  • Hose Type: Buna S (SBR). Synthetic textile braid.
  • Hose Working Pressure: 300 psi - (20 bar)
  • Net Weight: 26.7 lb
