ADDITIONAL INFORMATION:
SLIDE-IN MOUNTING BRACKET
Optional slide-in bracket simplifies reel mounting. Easily allows one person to hang the reel in an overhead application.
MORE CHOICES
All reels are available in 65' versions.
LATCH SPRING
Heavy-duty latch spring is designed for years of trouble-free service, and can be replaced without removing or disassembling the reel.
ENCLOSED SPRING
Cartridge style spring motor is packed with grease and fully enclosed for extra safety. Springs are factory balanced for each size reel.
MOUNTING FLEXIBILITY
Multi-position guide arm is easily adjusted for ceiling, floor, wall, tank, or truck mounting.
STRENGTH BEADS
Reels are constructed with strength beads for added rigidity.
ROLLED EDGES
Hubs are constructed of heavy gauge steel with rolled edges for extra strength and maximum protection.
SELF-LUBRICATING
1" double supported steel axle with 1" self-lubricating precision bearings.
RIGID CONSTRUCTION
Base plate and support post are built from heavy 1/4" plate steel to reduce flexing and fatigue.
HI-FLOW SWIVEL
Load-free high-flow swivel allows maximum product delivery, and can be replaced without removing or disassembling the reel.
DURABLE FINISH
All reels are powder-coated black for increased durability.

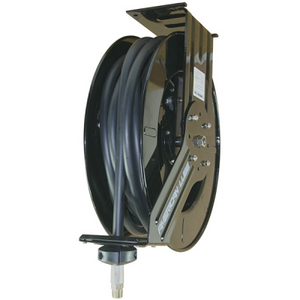

1/2" x 25' Advantage Plus Oil/ATF/Antifreeze Reel with Rubber Hose
Includes delivery hose and hose stop. Swivel inlet threads: 1/2" NPT (F). Delivery hose outlet threads: 1/2" NPT (M).
