ADDITIONAL INFORMATION:

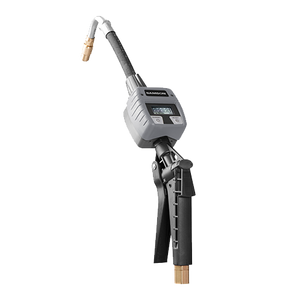

Metered Control Valve For Dispensing Water Based Fluids – 4 GAL/MIN
Oval gear hose end meter with electronic display for measured delivery of windshield washer, coolant and antifreeze solutions. Display is powered with two easy to replace 1,5V AAA alkaline batteries. Meter can measure in liters, quarts, pints and US gallons. Fluid inlet: ½’’ NPT (F). Maximum working pressure : 435 psi. Operating temperature range : 15 to 140°F
Samson control valves are used at the end of the hose assembly to dispense waterbased fluids and lubricants.
|
Product Specification |
|
|
Maximum Free Flow Rate |
4 gal/min (15 l/min) |
|
Maximum Working Pressure |
435 psi (30 bar) |
|
Fluid Inlet |
1/2" NPTF |
|
Fluid Outlet |
1/2" NPTF |
|
Accuracy |
+/- 0.5% |
|
Power Source |
2x "AAA" 1.5 Batteries |
|
Wetted Materials |
Acertal, Aluminium, Stainless Steel, NBR, Zinc Plated Steel, TPU, Polyamide |
Fluids Handled
- Synthetic and mineral based oil
- Antifreeze
- Gear Oil
- Hydraulic oil and fluids
- ATF
- Windshield Wash Fluids
- Water based Solutions
|
Part No. |
365 575 Digital Control Valve Flexible 90° Auto No-drip Tip |
|
Market Served |
Fleet service, Lube trucks, Mining equipment maintenance, Car and truck Dealerships, Fast Lube and Maintenance shops , Mass Transit maintenance, Railroad. |
