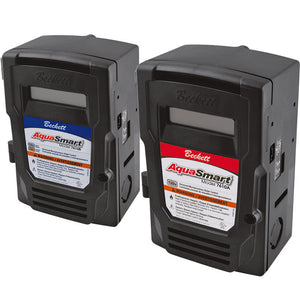

Beckett Corp AquaSmart 7610 Boiler Control for Oil and Gas

• Description

Introducing the new 7610 boiler control, designed and engineered by Beckett. The Beckett AquaSmart® is a universal boiler control designed for use on residential and light commercial boiler systems. All models include the option of Beckett HeatManager™ dynamic temperature reset that, when selected, provides up to 20% fuel consumption savings. The control includes a backlit LCD digital display with touch pad to easily program temperature limits, differentials, and other advanced options. The AquaSmart® also has memory storage of system history for help with diagnostic troubleshooting.

Model 7610A (120 V)
Model 7610B (24 V)

Features & Benefits

• Beckett HeatManager™ dynamic temperature reset
• Energy saving through circulator-off delay
• Expanded wiring box for easier installation
• Priority override for domestic hot water
• Freeze resistance can help prevent frozen pipes
• Temperature only and LWCO sensors available
• Cycle history diagnostic information
• Backlit LCD screen with programming touch pad
• Oil and gas offerings available
• Cold-Start compatible
• Easy to install Wireless Outdoor Temperature Reset (optional)

Technical Information Bulletins

AquaSmart Circulator Configuration Error
AquaSmart Firmware Revision
AquaSmart Replaceable Sensor Update
AquaSmart Boiler Temperature Control
AquaSmart Freeze Resistance Operation

Accessories
AquaSmart Wireless Temperature Module

Input

• 120 VAC
• 60 Hz
• 20 A Full Load Amperage (FLA)
• 15 A FLA with optional power switch (B1+C1+ZC)

24 Vac Thermostat Anticipator Current

• 0.1 amp

Burner (B1)

• Line Voltage Models:
  • 7.4 A at 120 VAC FLA
  • 44.4 A inrush Locked Rotor Amperage (LRA)
• Low Voltage Models:
  • 1.25 A at 24 VAC
  • 30 VA (total load)

Circulator (C1)

• 7.4 A at 120 VAC FLA
• 44.4 A inrush LRA

Zone Control (ZC)

• 7.4 A at 120 VAC FLA
• 44.4 A inrush LRA

Storage Temperature

• -40°F to +150°F (-40°C to +65°C)

Operating Temperature

• -4 to +150°F (-20 to +65°C)

Relative Humidity

• 5% to 85% RH, non-condensing and non-crystallizing
