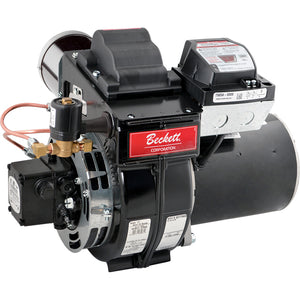

The Model SF uses many of the design features of the popular AF burner for high efficiency over a broad firing range. Both burners feature the proven, one-piece flame retention burner head that locks a highly stable, fuel-efficient flame in place to produce fuel savings as high as 35%. Because smoke is kept to zero in many appliances, heat exchangers stay clean and overall efficiency remains high for years.

Capacities

  • Firing rate range: 1.25 to 5.50 GPH
  • Input: 175,000 to 770,000 BTU/hr

Fuels

  • U.S.: No. 1 or No. 2 heating oil only (ASTM D396)
  • Canada: No. 1 stove oil or No. 2 furnace oil only

Fuel Unit

  • Single stage or two stage

Electrical Characteristics

  • Motor: ¼hp, 3450 rpm, NEMA “N” flange, manual reset overload protection
  • Power Supply: 120 V/60 Hz/1 phase
  • Ignition: Continuous duty solid-state ignitor
  • Operating Load: 7.1 amps max
  • Alternated Voltages or Frequency: Consult Customer Service

Ambient Operating Temperature

  • +32°F (0°C) Minimum
  • +115°F (+46°C)Maximum

Dimensions (standard)

  • Height: 12.5″
  • Width: 15″
  • Depth: 8.5″
  • Air tube diameter: 4″
