Description

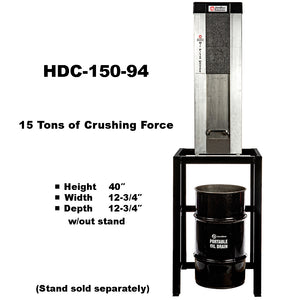

HDC-150-94
Heavy-Duty (stand sold separately)
The most effective solution for the storage and disposal of used oil filters is a filter crusher. JohnDow offers two filter crushers – one for automotive use and one for heavy-duty truck use – to assure compliance with federal, state and local regulations for draining oil filters. These rugged, steel filters are constructed with an air/hydraulic design for long-lasting operation.
Features include:
• Air/hydraulic operation for maximum crushing force
• Unitized construction for easy maintenance
• Door channel prevents drips and leakage
• Locator pins help center filter in the chamber
• Safety switch prevents operation when door is open
• Optional wall bracket and floor stands available
• Requires air filter/regulator/lubricator (Not included)
Specifications
AFC-100-94 |
HDC-150-94 |
|
Height | 28-1/2″ | 40″ |
Width | 12-3/4″ | 12-3/4″ |
Depth | 12-3/4″ | 12-3/4″ |
Max Filter Height | 7-1/2″ | 13″ |
Max Filter Diameter | 6″ | 6″ |
Crushing Force | 10 tons | 15 tons |
Pump/Type | Air/Hydraulic | Air/Hydraulic |
Weight | 111 lbs. | 150 lbs. |
