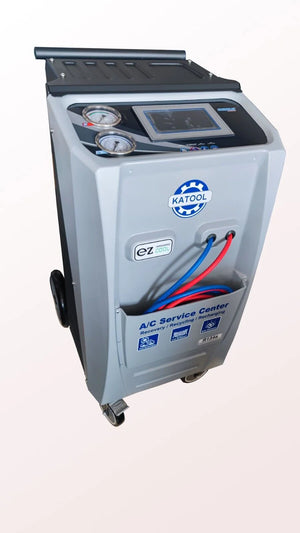

Katool R-134A Fully Automatic Recovery, Recycle & Recharge DUAL AC1800 Machine

Fully Automatic Recovery, Recycle & Recharge DUAL AC1800 Machine

SHIPING POLICY:
Freight shipping ONLY within the lower 48 states.
Free shipping to commercial address.Shipping carrier could charge extra to residential Delivery or limited access.
THE BUYER should be RESPONSIBLE FOR UNLOADING FROM THE TRUCK.
Customer should consider Forklift and unloading dock service.
The buyer should be also responsible for any re-delivery charges.
Buyers should inspect delivered the products carefully before signing Bill of Lading or Delivery Receipt at the time of delivery. Buyer satisfaction is assumed if no damages are noted on the delivery receipt.
Technical Details
Applicable Refrigerant Type
R134a
Voltage
110V AC, 60 Hz
Recovery Performance(70-75°F)
Min.95% in less than 30min
Charge Performance(70-75°F)
±0.5 oz (15 g)
Operate Temperature Range
41-122°F (5-50°C)
Max Pressure
18 bar
Filter-Drier Capacity
175 lbs (80kg),spin-on type
Gas Loadcell Accuracy
0.04oz/66lbs(1g/30kg)
Oil Loadcell Accuracy
0.04oz/66lbs(1g/30kg)
Vacuum Transducer Accuracy
1 mBar/1000mBar
Recovering Speed
39.7 lbs/h (18kg/h)
Charge Speed
2.2 lbs/min(1kg/min)
Hose Length
9.8’(3m)SAE J2788
Compressor
1/3hp(246W).themal protected,oiled,hermetically sealed
Vacuum Pump
3.6 CFM(120L/min),dual stage
Display
7”touch HQ
Tank
0.5 cubic feet(14.3L)
Oil Bottle
15 cubic inch(250mL)
Additional information
Printer
YES
Heating Belt
optional
SD Database
YES
Vacuum Test
YES
Fan&Condenser
YES
Packing Size
22”x 28”x41”(550x700x1050mm)
Gross Weight
240lb(110kg)
