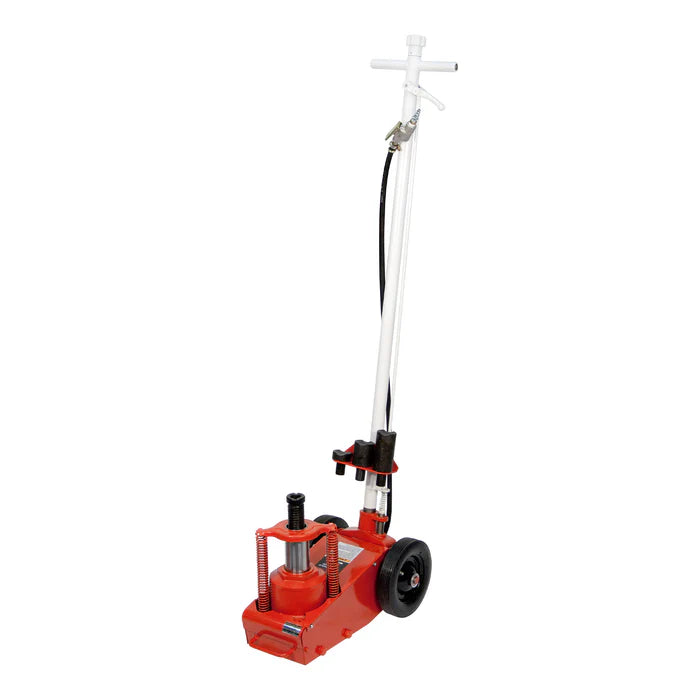

Norco 22 Ton Air/Hyd. Floor Jack w/ 2 Adapters plus Holder
by MT-RSR

Norco 22 Ton Air/Hyd. Floor Jack w/ 2 Adapters plus Holder

SKU NOR-72200D
$1,863.59 - $1,863.59
$1,863.59
$1,863.59 - $1,863.59
$1,863.59

Norco 22 Ton Air/Hyd. Floor Jack w/ 2 Adapters plus Holder

Ideal for heavy duty truck, agricultural and heavy construction equipment.

Features

  • 50" Long "T" handle helps in positioning jack under vehicles with low overhang.
  • The load release on the top mounted "T" handle allows operation in any handle position.
  • Handle locking lever secures handle in either vertical, horizontal or 45 degree position.
  • Compact design fits easily between tandem wheels.
  • Rust inhibitive coating on ram and extension screw offers longer life.
  • Large diameter wheels make maneuverability easy.
  • Self-retracting ram eliminates manual lowering of jack.
  • Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard.
  • Integrated filter protects air motor.
  • Fast lifting air motor.
  • Three removable 2" diameter saddles with handle mounted
  • saddle holder; 3/4", 2-1/4" and 4" in height.

Specifications

Low Lift Height 9"
High Lift Height 22"
Stroke 4.75"
Screw Extension 4.25"
Length 20"
Width 13"
P.S.I. Range 85-145
Shipping Weight 115 lbs.

Literature

Operating Manual

Parts Diagram

Sales Flyer

Manufactures Warranty Information

Interchangeable Part Numbers:

89211, 72200D
