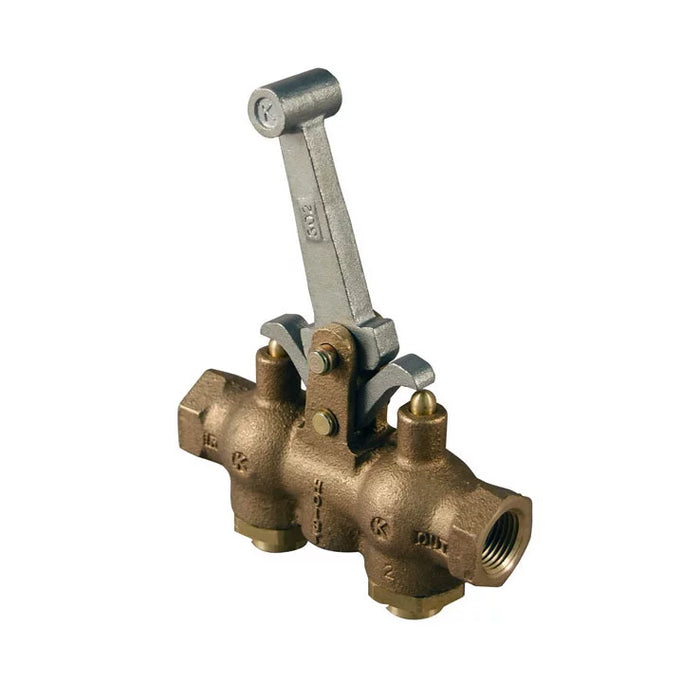

SVI INTERNATIONAL FK-302-500 1/2" Air Control Valve - Locking References: K68832-01

1/2" Air Control Valve - Locking

Cross References: K68832-01, many others

The Hoist Control valves are designed to operate various lifting devices utilizing compressed air (or oil) as a power source. The Valve body is of heavy cast brass construction with internal components of precision machined brass bar stock, stainless steel springs & inlet screen, and Buna-N-Seals to provide long life with minimum maintenance. These valves are widely used on automobile, truck hoists and spring loaded single acting cylinders. Each valve is individually tested after assembly. Maximum operating pressure, 200 PSIG.

If the application calls for the pressure source (air or oil) to be disconnected while the lifting device is in use, a check valve must be installed on the valve inlet to prevent reverse flow. Should reverse flow occur, serious injury may result when support for the load is reduced.

*Please Note: Caution should be exercised regarding application of the FK-302 valve. The State of California, and some other state and local governments, prohibit the use of the locking type lever on automotive and man lift control valves. The FK-303 should be used on this type equipment.
