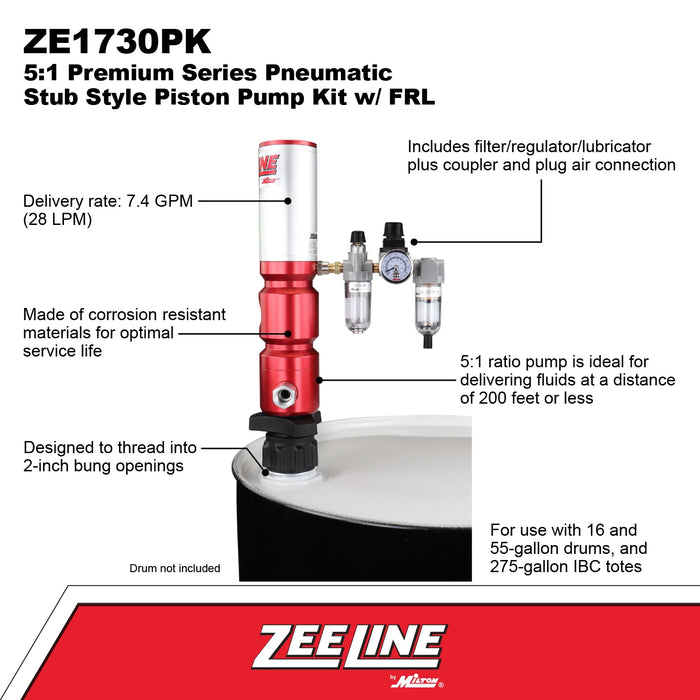

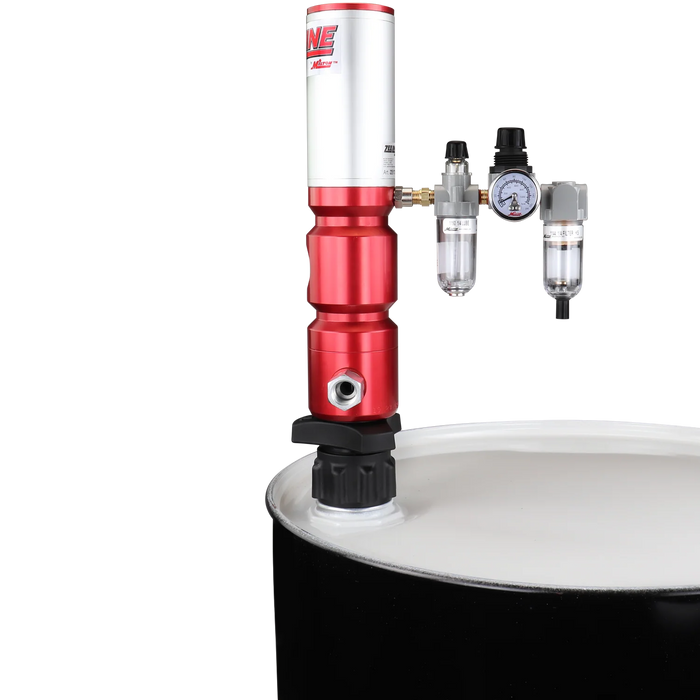

This listing is for ONE (1) Complete Zeeline by Milton® ZE1730PK 5:1 Pneumatic Stub Style Premium Series Piston Pump Kit — Pump + 1/4" FRL Included.
⚠️ Suction Tube NOT Included — Must be purchased separately based on your container size. See compatible suction tubes below.
⚠️ Warning: Do NOT use with flammable fluids.
Built for professionals the Zeeline ZE1730PK is a complete 5:1 Premium Series Piston Pump Kit designed for medium to high viscosity fluid transfer for short to medium distance applications. With a high flow rate of 7.4 GPM (28 LPM) and minimal moving parts with corrosion resistant materials, this pump keeps your shop running efficiently with lower repair costs and reduced downtime. Includes a 1/4" Filter/Regulator/Lubricator (FRL) and 2" NPT bung adapter for easy installation.
What's Included (Complete Kit):
- ZE1730P — 5:1 Premium Series Piston Pump
- 1/4" FRL (Filter/Regulator/Lubricator)
- 2" NPT Bung Adapter
⚠️ Suction Tube NOT Included — Select based on container size:
-
ZE15220 — For 16-Gallon Drums
-
ZE15223 — For 55-Gallon Drums
-
ZE15225 — For 275-Gallon IBC Totes
Key Features:
- Heavy-duty 5:1 ratio oil transfer pump for medium to high viscosity fluids
- High flow rate: 7.4 GPM (28 LPM) for quick and efficient fluid dispensing
- Versatile — compatible with 16-gallon drums, 55-gallon drums, 275-gallon IBC totes, or wall mount with correct suction tube and foot valve
- Minimal moving parts with corrosion resistant materials — reduces downtime and repair costs
- 1/4" FRL included for clean, regulated air supply
Compatible Fluid Types:
- Motor Oil (up to SAE 130)
- Gear Oil
- Hydraulic Oil
- Synthetic Hydraulic Oil
- Automatic Transmission Fluid (ATF)
Specifications:
- Pump Ratio: 5:1
- Flow Rate: 7.4 GPM (28 LPM)
- Air Inlet Size: 1/4" NPT
- Fluid Outlet Size: 1/2" NPT
- Working Pressure: 87–116 PSI (6–8 BAR)
- Air Consumption: 66 GPM (250 L/min)
- Noise Level: 80 dB
- FRL: 1/4" Included
- Bung Adapter: 2" NPT Included
- Quantity: 1 Complete Kit
- Part Number: ZE1730PK
- Brand: Zeeline by Milton®
⚠️ California Proposition 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. Visit www.P65Warnings.ca.gov for more information.
Need the pump only? The Zeeline ZE1730P 5:1 Premium Series Piston Pump (Pump Only) is also available in our store. Need a complete kit with suction tube? Also available:
-
ZE1730PK-16 — 5:1 Premium Series Pump Kit for 16-Gallon Drums (with Suction Tube)
-
ZE1730PK-55 — 5:1 Premium Series Pump Kit for 55-Gallon Drums (with Suction Tube)
-
ZE1730PK-IBC — 5:1 Premium Series Pump Kit for 275-Gallon IBC Totes (with Suction Tube)
