ADDITIONAL INFORMATION:
Double acting air operated low pressure pumps for transferring lubricants. Pumps include height adjustable 2" NPTM bung adapter for tank or drum bung mounting. Built in port for optional 609 007 pressure relief valve.
Fluids Handled
- Oil
- Antifreeze
- Windshield Wash Solution
- Hydraulic Fluids
- Water
- Waste Oil & Antifreeze
|
|
Stainless Steel Pump |
|
Part No. |
331 120 |
|
Pump Type |
Universal Stub pump, divorced |
|
Pressure ratio |
1:1 |
|
Effective Air Piston Diameter |
1 ½ " (35mm) |
|
Piston Stroke |
3" (75mm) |
|
Air Pressure Operating range |
20 to 145 psi (1,5 to 10 bar) |
|
Air Inlet |
1/4" NPT (F) |
|
Fluid Inlet |
1" NPT (F) |
|
Fluid outlet |
¾ " NPT (F) |
|
Delivery at 100 cycles per minute |
6.6 gal/min – 25 I / min |
|
Maximum free delivery |
10 gal/min – 38 I / min |
|
Wetted Material |
PTFE, Viton ®, Stainless Steel |
|
Height Adjustable Bung Adaptor |
Included |
|
Manual |
833 810 |
|
Part No. |

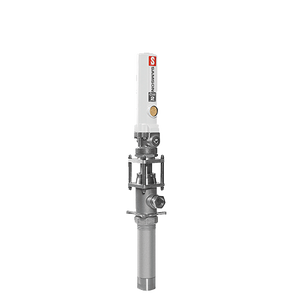

331 120 PumpMaster 2- 1:1 Stub Pump, Stainless Steel |
|
Market Served |
Fleet service, Lube Trucks, In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance, Railroad. |
