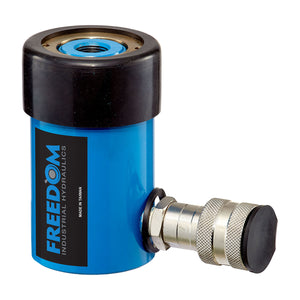

| Rated (Cap.) |
12 |
. |
| Max. (Cap.) |
13.8 |
. |
| Stroke (in.) |
1.64 |
. |
| Model # |
SHS121 |
. |
| Cylinder Effective Area (in.2) |
2.79 |
. |
| Oil Capacity (in.3) |
4.61 |
. |
| Collapsed Height (in.) |
4.72 |
(A) |
| Extended Height (in.) |
6.38 |
(B) |
| Outside Diameter (in.) |
2.72 |
(C) |
| Cylinder Bore Dia. (in.) |
2.13 |
(D) |
| Plunger Diameter (in.) |
1.38 |
(E) |
| Center Hole Dia. |
0.77 |
(F) |
| Base to Coupler Port. |
0.98 |
(G) |
| Saddle Distance above Cyl. (in.) |
– |
(H) |
| Piston Internal Thread (in.) |
– |
(I) |
| Piston Thread Length (in.) |
– |
(J) |
| . |
. |
. |
| Base Mounting Holes |
|
. |
| Bolt Circle (in.) |
– |
(K) |
| Thread |
– |
(L) |
| Thread Depth (in.) |
– |
(M) |
| . |
. |
. |
| Collar Thread (in.) |
2-3/4″-16 |
(N) |
| Collar Thread Length (in.) |
1.18 |
(O) |
| Saddle Diameter (in.) |
– |
(P) |
| Weight (lbs.) |
6.75 |
