by Samson

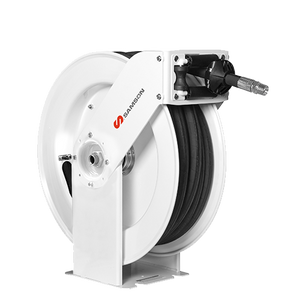

Samson 505 Series Reel LP 50' X 3/4" For DEF 505 550

SKU Samson 505 550 50' x 3/4' BSPPM
Save 10% Save 10%
Original price $2,332.00
Original price $2,332.00 - Original price $2,332.00
Original price $2,332.00
Current price $2,090.40
$2,090.40 - $2,090.40
Current price $2,090.40

Full metal heavy duty double pedestal hose reels, can handle up to 50' x 3/4".

Part No.: 505 550 - 50' x 3/4" BSPP(M)

Inlet hose not included, purchase 750530 separately.

  • Very tough construction able to stand regular use and abuse in Intensive Duty applications.
  • Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
  • Fully ported shaft and swivel.
  • Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
  • Large effective radial latching area for easier operation.
  • Hose guide arm can be placed in different positions to accommodate any method of mounting.
  • Narrow footprint allows mounting more reels on the same surface.
Hose Length 50'
Hose ID 3/4"
Outlet Thread 3/4" NPTM
Max. Working Pressure 300 psi
