Samson 506 Series Reel LP 50' x 1/2" For DEF 506 722

SKU Samson 506 722 50' x 1/2" BSPPM
Save 10% Save 10%
Original price $1,246.43
Original price $1,246.43 - Original price $1,246.43
Original price $1,246.43
Current price $1,117.30
$1,117.30 - $1,117.30
Current price $1,117.30

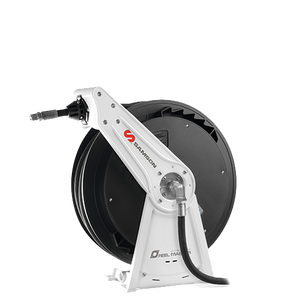

Aluminum base and arms with composite spool hose reel. Reel can handle up to 50' x 1/2" hose.

Fluids Handled

  • DEF
  • Aluminum base and guide arm provide the rigidity to withstand the most demanding applications while offering a reduced weight for easy installation.
  • Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
  • Fully ported shaft and swivel.
  • Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
  • Large guide latching area for easier operation.
  • Six roller guide outlet prevents hose pinching and reduces friction.
  • Hose guide arm can be placed in different positions to accommodate any method of mounting.
  • Hose reels with hose include 30″ inlet hose.

Hose Length: 30', 50'

Hose ID: 1/2"

Outlet Thread: 1/2" BSPPM

Max. Working Pressure: 300 psi
