ADDITIONAL INFORMATION:
Alemite offers a Diesel Exhaust Fluid (DEF) Dispensing System for shops servicing heavy-duty diesel vehicles. Engineered for efficiency and reliability, Alemite’s DEF pump systems and reels provide superior performance and long service life at an affordable price. Alemite has also added a fuel transfer pump to quickly transfer diesel, kerosene or mineral spirits.
DEF DIAPHRAGM PUMPS

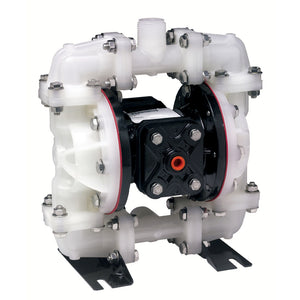

Air Operated Diaphragm Pump (8322-C)
Alemite’s Standard 1/2" (12.7 mm) Polypropylene / Polytetrafluoroethylene (PTFE) Air Operated Diaphragm Pump can be used for installed systems to service overhead reels.
FEATURES:
• 1/2" NPT fluid inlet / outlet
• 1/4" NPT air inlet
• 14 gpm free delivery
• Materials meet ISO / DIN standards for dispensing DEF
RELATED ACCESSORIES:
• Universal Diaphragm Pump Bracket (343172)
|
Prod. # |
Material |
Pressure |
Body Material |
Diaphragm Material |
Air Inlet |
Recommended Fluids |
|
|
Inlet/ Outlet |
Delivery Rate (per minute) |
||||||
|
8322-C |
1/2" |
14 gallon (53 liter) |
125 psi (8.6 bar |
Poly |
PTFE |
1/4" |
Concentrates, Corrosives, Water Based Solvents, DEF |
* Meters sold separately
