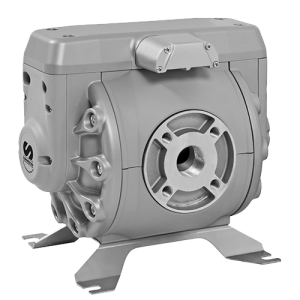

Samson DF250 1 1/2" Pump Aluminum/Buna 554 030

Name: Samson DF250 1 1/2" Pump Aluminum/Buna 554 030
Brand: Samson
SKU: 554 030
Price: 1747.86 USD
Availability: InStock

SKU 554 030

$1,747.86 - $1,747.86

$1,747.86

$1,747.86 - $1,747.86

$1,747.86

Description

Directflo 250

Directflo diaphragm pumps the fluid through the center of the pump and compressed air acts on the outside face of the diaphragms.

Part No:	554 030 DF250 Aluminum-Buna-N Check Balls
Markets Served:	In-Plant, Mining equipment maintenance, Car and truck dealers, Quick Lubes, Mass Transit Maintenance, Railroad, Fleet service, Lube Trucks

Pump Pressure Ratio: 1:1

Maximum Free Flow Rate: 66 gal/min (250 l/min)

Maximum Suction Lift: 26' (8 m)

Minimum Air Pressure: 22 psi (1.5 bar)

Maximum Air Pressure: 115 psi (18 bar)

Max Size Solid Suspension: 1/4" (6 mm)

Air Inlet: 1/2" NPSM(F)

Fluid Outlet: 1 1/2" NPT(F) & ANSI 1" B16.5 150 lb flange

Fluid Inlet: 1 1/2" NPT(F) & ANSI 1" B16.5 150 lb flange

Wetted Materials: Aluminum / Buna-N / Stainless Steel

Fluids Handled
