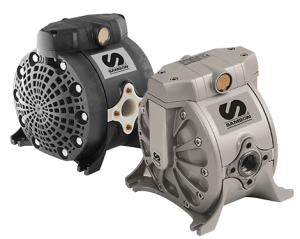

Samson DF100 1" Pump Aluminum/Acetal 551 010

Directflo 100

Directflo diaphragm pumps the fluid through the center of the pump and compressed air acts on the outside face of the diaphragms.

551010

DF100 Metallic Diaphragm Pump Aluminum

For fluid transfer, evacuation, and distribution systems. 22.7 gallon - 28 US gpm 1 inch fluid port. Very robust construction, the pump is fully enclosed in an aluminum shield.

Application: Lubricants, waste oil, antifreeze, transmission fluid, water.

Specifications:

• Pressure Ratio - 1:1
• Maximum free delivery - 28 US gpm (100 l/min)
• Delivery per stroke - 0.09 US gallons (0.35 l)
• Air pressure operating range - 45 to 100 psi (3 to 7 bar)
• Solids in suspension max size - 3/16 inch (4 mm)
• Max dry suction head - 15 feet (4.5 m)
• Max wet suction head - 23 feet (7 m)
• Weight - 19.3 lb (7.2 Kg)
• Fluid inlet - 1 inch NPSM and flange
• Fluid outlet - 1 inch NPSM and flange
• Air inlet - 3/8 inch NPSM
• Wetted part material - aluminum
• Check balls - Hytrel®
• Diaphragms - Hytrel®

Fluids Handled

• Windshield Wash Solution
• DEF
• Oils
• Antifreeze
