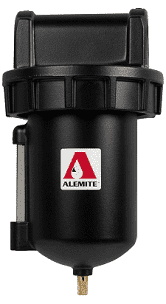

Alemite Moisture Separator 3/4" - 5612-2
by Alemite

Alemite Moisture Separator 3/4" - 5612-2

SKU 5612-2
$194.93 - $194.93
$194.93
$194.93 - $194.93
$194.93

Pneumatic equipment requires a clean, controlled air supply to work at the highest efficiency. Alemite Compressed Air Components help ensure that your Alemite lubrication systems operate at a high standard, with minimal down time for repair due to poor air quality.

FILTERS

Alemite Filters provide 2 stage filtration, removing condensation and foreign material with minimal pressure drop. Metal bowl construction for durability, and built in sight glass to easily see condensate level.

All models feature a
maximum inlet pressure of 250 psi (17 bar)
Product # Inlet/Outlet Air Flow @ 90 psi (6 bar) Inlet Pressure Bowl Capacity Max Operating Temperature Weight
5604-3* 1/4” NPTF(f) 53 cfm 4.4 oz (124.7 g) 175 °F (79 °C) 1.8 Lb.
5606-3* 3/8” NPTF(f) 80 cfm 4.4 oz (124.7 g) 175 °F (79 °C) 1.2 Lb.
5608-3* 1/2” NPTF(f) 85 cfm 4.4 oz (124.7 g) 175 °F (79 °C) 3 Lb.
5612-2** 3/4” NPTF(f) 270 cfm 16 oz (453.6 g) 175 °F (79 °C) 5.6 Lb.
5616-2** 1” NPTF(f) 350 cfm 16 oz (453.6 g) 175 °F (79 °C) 6 Lb.
5644-2*** 1/4” NPTF(f) 50 cfm 5 oz (141.7 g) 175 °F (79 °C) 1.8 Lb.
