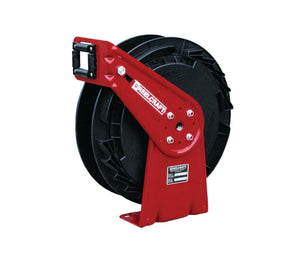

REELCRAFT RT602-OHP 3/8 x 25ft, 5000 psi, Grease Without Hose

Hose Reel, 3/8 x 25ft

• Reinforced Steel – The steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
• Full Flow Stress Free Swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.
• Long Life Drive Spring – Declutching arbor eliminates reverse spring winding, and torsions latch spring is virtually unbreakable. High quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
• Quality Finish and Corrosions Resistant – Individually powder coated components along with the composite spool offers the maximum protection from premature corrosion.

Manufacturer: Reelcraft
Country of Origin Code: US
UPC: 699567000709

Rating: 5000 psi
Hose ID: 3/8 inch
Hose OD: 0.730
Length Capacity: 25 feet
Inlet: 1/2 (F)NPTF

Max Temp F: 150 deg F

The RT Series is an economical choice for a medium duty, lighter weight, spring-driven hose reel for applications that are less demanding, yet require a product that can withstand industrial and commercial use. The industrial grade drive spring is protected from the environment in a polypropylene spool for longer service life. Guide arm adjusts to seven positions.

• Reinforced Steel - The steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
• Full Flow Stress Free Swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.
• Long Life Drive Spring - Declutching arbor eliminates reverse spring winding, and torsions latch spring is virtually unbreakable. High quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
• Quality Finish and Corrosions Resistant - Individually powder coated components along with the composite spool offers the maximum protection from premature corrosion.

Harmonized Tariff Code: 8479.89.9899
Country of Origin Code: US
UPC: 699567000709
