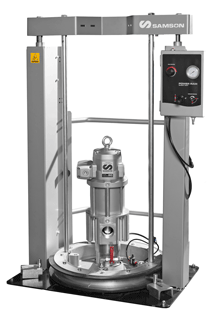

Samson PM60 3:1 Grease High Vol Transfer Inductor/Pump 534 321

Samson PM60 3:1 Grease High Vol Transfer Inductor/Pump 534 321

by Samson
$13,818.23 - $13,818.23
$13,818.23
$13,818.23 - $13,818.23
$13,818.23

PM60 3:1 High Volume Grease Transfer Package

PM60 3:1 High Volume Grease Transfer Package

Pump Ratio 3:1
Air pressure operating range 20 – 150 psi (1.5 – 10.3 bar)
Air consumption (1) 44 scfm (1.250 Nl/min)
Maximum outlet pressure 450 psi (31 bar)
Air motor effective diameter 6” (150 mm)
Air motor stroke 4” (100 mm)
Maximum free flow 330 lb/min (150 Kg/min)
Continuous duty flow rate
at 80 cpm 		132 lb/min (60 Kg/min)
Air inlet 1/2” NPT (F)
Fluid outlet 2” NPT (F)
Wetted materials Steel / Hard chromed steel /
Zinc plated steel / Aluminum
/ PTFE / NBR / FKM / PU /
Nickel plated aluminum
Noise level Pump noise level meets
OSHA requirements at all
recommended operating
air pressures
Service Manual  SM853833

(1) Air consumption at 70 psi air pressure, NLGI-2 grease at 68 ºF and 60 cpm.
