ADDITIONAL INFORMATION:
Alemite reels are the standard for quality and durability in the lubrication industry. High attention to detail in material selection, construction and testing ensure that Alemite reels perform well – every time – providing a key component in a safe and efficient operation.

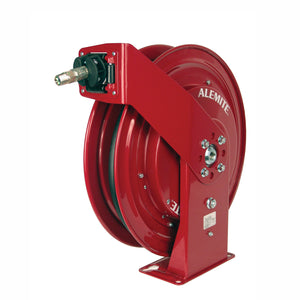

HIGH CAPACITY REELS
Alemite High Capacity Reels offer high volume delivery in the most extreme outdoor conditions. The high capacity flow passage reduces fill rate time, improving efficiency and helping reduce cost.
FEATURES:
• Superior Performance – Swivel and reel ball bearings reduce torque load on power spring for smooth retraction every time
• Anti-Lockout Design – Ratchet prevents lockup when hose is fully extended, eliminating the need to manually release the pawl at the reel
• Corrosion Resistant – Sealed bearings prevent contamination and minimize maintenance, a critical performance factor in dirty environments. Sealed rollers eliminate contamination which can bind hose guide rollers
• Easy Installation and Maintenance – Factory lubricated one piece power spring cassette makes installation and maintenance safe and easy. Outlet port swivel nut makes installing delivery hose quick and easy
• Strong and Stable – Double arm design provides extra support for a larger hose during use. Four corner bolt hole pattern on outside of base provides extra stability
• Compatibility – Oil, air, water, fuel
BARE REELS
|
Product # |
Color |
Usage |
Pressure |
Reel Inlet |
Reel Outlet |
Weight |
|
7340 |
Maroon |
Grease |
6000 psi (413 bar) |
3/8" NPTF(f) |
3/8" NPSM(f) Swivel |
123 lb (55 kg) |
