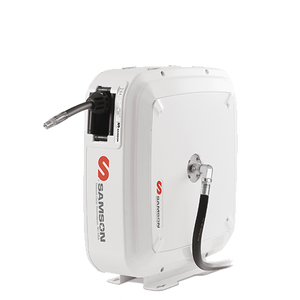

Samson 507 Series Enclosed Hose Reel LP 50' x 3/8" 507 121

507 Series Low Pressure

Aluminum enclosure with composite spool hose reel. Reel can handle up to 50′ x 1/2″ hose.

Fluids Handled

• Water
• Air

• Corrosion resistant aluminum enclosure form a very rigid and stable structure, with light weight and attractive design.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large latching area for easier operation.
• Position-able mounting brackets to accommodate any method of mounting.
• Two large lateral service windows facilitate common maintenance operations.
• Hose reels with hose include 30″ inlet hose.

Hose Length: 30', 50'

Hose ID: 1/2", 3/8"

Outlet Thread: 3/8" NPTM, 1/2' NPTM

Working Pressure: 300 psi
