ADDITIONAL INFORMATION:
365 316 - Preset meter, rigid outlet with 1/4 turn non-drip tip

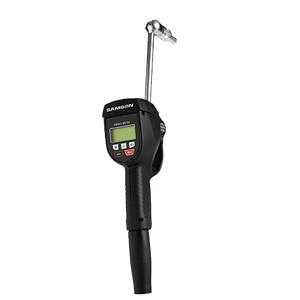

PreSet Control Handle
SAMSON’s electronic preset metered control handle allows the filling of large engines and lubricant reservoirs. Select the desired volume and squeeze the trigger. The valve will deliver the volume requested & shut off.
Fluids Handled
- Synthetic and mineral based oil
- Transmission fluid
- Gear Oil
- Hydraulic oil and fluids
- ATF
- Antifreeze solutions
8 gal/min (30 l/min)
1,450 psi (100 bar)
1/2" NPT(F)
1/2" NPT(F)
+/- 0.5%
4 x “AA” alkaline
Aluminum / AISI316 stainless steel / Buna-N / Delrin / brass / zinc plated steel
