Samson PumpMaster 4 - 5:1 freeshipping - Empire Lube Equipment

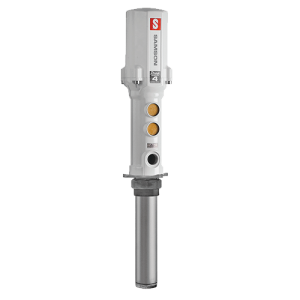

Samson PM4 5:1 Universal Stub Pump W/Bung Adaptor 347 120

SKU:Samsons 347 120

Vendor
Brand: Samson
Sale price
$719.92

Quantity must be 1 or more

ADDITIONAL INFORMATION:

Double acting air operated medium pressure for dispensing lubricants in medium to large size installations, that include multiple outlets with simultaneous operations. Pumps include height 2" NPTM adjustable bung adaptor for drum and tank bung mounting. Built in port for optional (PN 609 007) pressure relief valve.



348120

PM 4 5:1 Ratio 55 Gallon Drum Pump with Bung Adapter

These Heavy-Duty air operated pumps are designed for lubricant dispensing systems. The proven design of the highly reliable air motor combined with the high performance pumping section makes this pump family the preferred choice in the most demanding oil dispensing systems. PumpMaster 4 pumps are available with 3:1, 5:1, and 8:1 pressure ratios.

Double acting air operated high pressure pumps for dispensing lubricants in large size installations including multiple dispensing points with simultaneous operation. Will pump all types of lubricants, even those of higher viscosity. Pump includes bung adapter.

Typically used in workshops, service stations, fast lube centers, fleet maintenance, mining, agriculture, armed forces, construction, trains, etc.

specifications:
  • 5:1 pressure ratio
  • 1.65 inch (42mm) pump tube diameter
  • 3.55 inch (90mm) air piston diameter
  • 4 inch (100mm) air piston stroke
  • 9.1 gpm (35 I/min) maximum free flow capacity
  • 40 psi (3 bar) minimum air pressure
  • 140 psi (10 bar) maximum air pressure
  • 700 psi (50 bar) maximum fluid pressure
  • 3/8 inch NPSM (F) air inlet
  • 3/4 inch NPSM (F) fluid outlet
  • 1 inch NPT (F) fluid inlet (stub pump only)



347120

PM 4 5:1 Ratio Stub Pump with Bung Adapter

These Heavy-Duty air operated pumps are designed for lubricant dispensing systems. The proven design of the highly reliable air motor combined with the high performance pumping section makes this pump family the preferred choice in the most demanding oil dispensing systems. PumpMaster 4 pumps are available with 3:1, 5:1, and 8:1 pressure ratios.

Double acting air operated high pressure pumps for dispensing lubricants in large size installations including multiple dispensing points with simultaneous operation. Will pump all types of lubricants, even those of higher viscosity. Pump includes bung adapter.

Typically used in workshops, service stations, fast lube centers, fleet maintenance, mining, agriculture, armed forces, construction, trains, etc.

specifications:
  • 5:1 pressure ratio
  • 1.65 inch (42mm) pump tube diameter
  • 3.55 inch (90mm) air piston diameter
  • 4 inch (100mm) air piston stroke
  • 9.1 gpm (35 I/min) maximum free flow capacity
  • 40 psi (3 bar) minimum air pressure
  • 140 psi (10 bar) maximum air pressure
  • 700 psi (50 bar) maximum fluid pressure
  • 3/8 inch NPSM (F) air inlet
  • 3/4 inch NPSM (F) fluid outlet
  • 1 inch NPT (F) fluid inlet (stub pump only)
