ADDITIONAL INFORMATION:

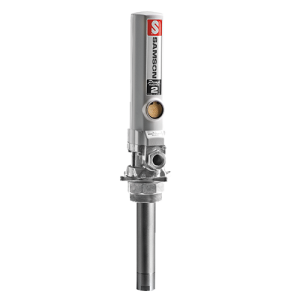

Double acting air operated medium pressure pumps for dispensing lubricants from mobile units, oil distribution packages and small systems. Pumps include height 2″ NPTM adjustable bung adaptor for tank or drum bung mounting. Built in pressure relief port for optional (PN 609 007) pressure relief valve.
Pump Pressure Ratio: 3:1
Continuous Duty Flow Rate: 2.7 gpm (10 l/min)
Maximum Free Flow Rat: 9.3 gpm (35 l/min)
Air Pressure Operating Range: 20-140 psi (1.5-10 bar)
Maximum Outlet Pressure: 420 psi (30 bar)
Air Motor Effective Diameter: 1 1/2" (35 mm)
Air Motor Stroke: 3" (75 mm)
Air Consumption: 6.4 scfm (180 NL/min)
Air Inlet: 1/4" NPTF
Fluid Inlet: 1" NPTF
Fluid Outlet: 3/4" NPTF
Wetted Materials
Aluminium, Steel, NBR, PTFE
Noise Level
80 dB
Application
Stub pump, 16 gal drum pump, 55 gal drum, 257/500 tank, 60" tank
Simultaneous Dispense Points
1
Max. Line Length
200' (60 m)
Pump Description
Utility Medium Pressure
