Samson 506 Series Medium Pressure oil/ lubricants freeshipping - Empire Lube Equipment
by Samson

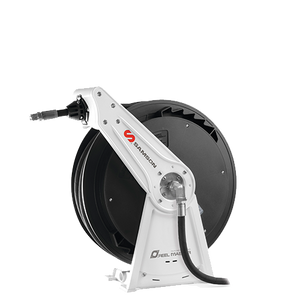

Samson 506 Series Reel MP 50' x 1/2" 506 222

SKU Samson 506 222 50' x 1/2" NPTM
$570.46 - $570.46
$570.46
$570.46 - $570.46
$570.46

Aluminum base and arms with composite spool hose reel. Reel can handle up to 50' x 1/2" hose. includes the hose

Fluids Handled

  • Windshield Wash Solution
  • Synthetic and Mineral Oils
  • Antifreeze solutions



  • Aluminum base and guide arm provide the rigidity to withstand the most demanding applications while offering a reduced weight for easy installation.
  • Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
  • Fully ported shaft and swivel.
  • Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
  • Large guide latching area for easier operation.
  • Six roller guide outlet prevents hose pinching and reduces friction.
  • Hose guide arm can be placed in different positions to accommodate any method of mounting.
  • Hose reels with hose include 30″ inlet hose.

Hose Length: 30', 50'

Hose ID: 1/2"

Outlet Thread: 1/2" NPTM

Max. Working Pressure: 2,000 psi
