Rhino Tuff Tanks RTT-6111-NV 45/45/45/45 GALLON GRAVITY FEED TANK PACKAGE - Empire Lube Equipment
by Rhino Tuff Tanks

Rhino Tuff Tanks RTT-6111-NV 45/45/45/45 GALLON GRAVITY FEED TANK PACKAGE

SKU Rhino Tuff Tanks 500380
$2,146.89 - $2,146.89
$2,146.89
$2,213.14
$2,213.14 - $2,213.14
$2,213.14

PACKAGE INCLUDES:

  • Four (4) 45 Gallon Stackable Tanks
  • Tank stand with 24″ legs
  • Drip Tray Kit
  • Accessory Package that includes:
    • Braided Poly Tubing
    • Polyethylene Elbow with barbed end
    • Polyethylene Union with barbed end
    • 1″ Hose Clamps
    • 2oz Tube of Thread Sealant
    • Elbow Kit with nut for stand

FEATURES

  • 2″ top opening for pump or vent application
  • 1″ opening for desiccant breather or remote fill
  • Convenient 2″ center fill opening
  • Interlocking top and bottom ridges for secure stacking
  • Six molded-in brass inserts allow for side mount pump plate to be attached
  • Mold-in graphic and identification label
  • Industry’s only molded-in brass 1″ NPT bushing at drain opening
  • Molded-in site gauge and semi-transparent material eliminates the need for external site gauges
  • Natural virgin high-density polyethylene construction
  • Stackable in any combo – no converting brackets needed
  • See your exact fluid levels
  • Standard 3′ x 3′ footprint among all sizes

PICK FOUR VALVES

To complete your order pick four valves based upon your fluid needs.
Refer to chemical compatibility chart for more information.

45 GALLON TANK (170 L)

Included in this package.

STAND KIT WITH 24" LEGS

Included in this package.

4-TANK GRAVITY FEED ACCESSORY PACKAGE

Included in this package.

DRIP TRAY KIT

Included in this package.

BRASS SPRING RELEASE VALVE (UL LISTED) — OPTIONAL

RTT-4001

Suitable for use with Lubricants, Hydraulic Fluids, Synthetic Fluids. Not recommended for DEF Fluids. Our valves integrate into all of our tank packages.

FEATURES:

  • 1” Male NPT
  • 1” Spout Outlet with Hanging Hook
  • Spring Loaded Self-Closing Handle for Safe Dispensing
  • Internal Buna Gasket
  • Lockable
  • UL Listed

Refer to chemical compatibility chart for more information.

POLYETHYLENE BALL VALVE KIT — OPTIONAL

RTT-4002

Suitable for use with most lubricants and chemicals. Our valves integrate into all of our tank packages.

FEATURES:

  • 1” Polyethylene Coupler
  • 1” Polyethylene Ball Valve – Manual On/Off Handle BALL VALVE – MANUAL ON/OFF HANDLE
  • 1” Polyethylene Barbed 90 Degree Elbow Outlet

Refer to chemical compatibility chart for more information.

BRASS BALL VALVE KIT — OPTIONAL

RTT-4136

Suitable for use with Lubricants, Hydraulic Fluids, Synthetic Fluids. Not recommended for Antifreeze and DEF Fluids. Our valves integrate into all of our tank packages.

FEATURES:

  • Brass Valve Construction
  • 1” Male NPT Inlet
  • 1” Barbed 90 Degree Elbow Outlet (Polyethylene Construction)
  • Lockable
  • Manual On/Off Handle
Refer to chemical compatibility chart for more information.

STAINLESS STEEL BALL VALVE KIT — OPTIONAL

RTT-4137

Suitable for use with most lubricants and chemicals except some acid chemicals. Our valves integrate into all of our tank packages.

FEATURES:

  • 1” 304 Stainless Steel Full Port Valve
  • Manual On/Off Handle
  • Lockable
  • 1” 304 Stainless Steel Close Nipple Inlet
  • 1” Poly Barbed 90 Degree Elbow Outlet

Refer to chemical compatibility chart for more information.

BRASS SPRING RELEASE VALVE 1" — OPTIONAL

RTT-4111

Suitable for use with Lubricants, Hydraulic Fluids and Synthetic Fluids. Not recommended for DEF Fluids. Our valves integrate into all of our tank packages.

FEATURES:

  • 1” Male NPT
  • 1” Spout Outlet with Hanging Hook
  • Spring Loaded Self-Closing Handle for Safe Dispensing
  • Internal Buna Gasket
  • Lockable

Refer to chemical compatibility chart for more information.

8 FOOT GRAVITY HOSE WITH MANUAL FARM NOZZLE — OPTIONAL

RTT-4075

Suitable for use with Lubricants, Hydraulic Fluids, Synthetic Fluids. Not recommended for Antifreeze and DEF Fluids. Our valves integrate into all of our tank packages. Tank and Stand Kit sold separately.

FEATURES:

  • 1” Brass Ball Valve
  • 1” Black Iron Street Elbow
  • 1” X 8’ Hose with Swivel
  • 1” Farm Dispensing Nozzle

Refer to chemical compatibility chart for more information.

NO VALVE OPTION — OPTIONAL

1" Stainless Steel Drain Plugs

ADDITIONAL INFORMATION

Shipping Weight

280 lbs
Shipping Dimensions

44 x 36 x 54 in
Assembled Dimensions

36 x 42 x 68 in
Number of Tanks

4

45 GALLON TANK (170 L)

Weight

35 lbs
Dimensions

36 x 36 x 10 in
d
×

Make An Offer

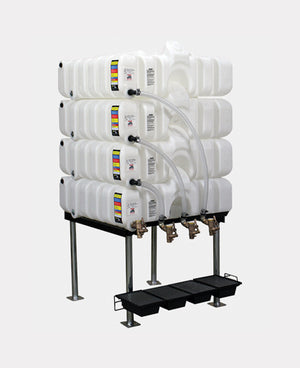

Descriptive image text
