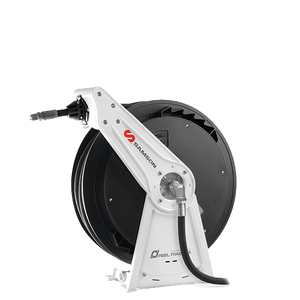

Samson 506 Series Reel HP Oil Suction 20' x 5/8" 506 503

Aluminum base and arms with composite spool hose reel. Reel can handle up to 50' x 1/2" hose.

Fluids Handled

• Waste Oil Evacuation

• Aluminum base and guide arm provide the rigidity to withstand the most demanding applications while offering a reduced weight for easy installation.
• Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
• Fully ported shaft and swivel.
• Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
• Large guide latching area for easier operation.
• Six roller guide outlet prevents hose pinching and reduces friction.
• Hose guide arm can be placed in different positions to accommodate any method of mounting.
• Hose reels with hose include 30″ inlet hose.

Hose Length: 20'

Hose ID: 5/8"

Outlet Thread: 1/2" NPTM

Max. Working Pressure: 2,000 psi
