Samson 506 Series High Pressure, Water up to 200° freeshipping - Empire Lube Equipment
by Samson

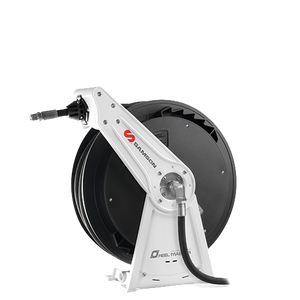

Samson 506 Series Reel HP 50' x 3/8" for HP Water 506 421

SKU Samson 506 421 50' x 3/8" NPTM
$881.45 - $881.45
$881.45
$1,013.67
$1,013.67 - $1,013.67
$1,013.67

Aluminum base and arms with composite spool hose reel. Reel can handle up to 50' x 1/2" hose.

Fluids Handled

  • Water up to 200°

Specs

  • Aluminum base and guide arm provide the rigidity to withstand the most demanding applications while offering a reduced weight for easy installation.
  • Fatigue resistant steel spring for years of durable performance and even load when pulling and recoiling the hose.
  • Fully ported shaft and swivel.
  • Spool mounted on two permanently lubricated and sealed ball bearings to reduce torque load on spring for smooth retraction and longer life.
  • Large guide latching area for easier operation.
  • Six roller guide outlet prevents hose pinching and reduces friction.
  • Hose guide arm can be placed in different positions to accommodate any method of mounting.
  • Hose reels with hose include 30″ inlet hose.

Hose Length: 50'

Hose ID: 3/8"

Outlet Thread: 3/8" NPTM

Max. Working Pressure: 2,400 psi
