ADDITIONAL INFORMATION:

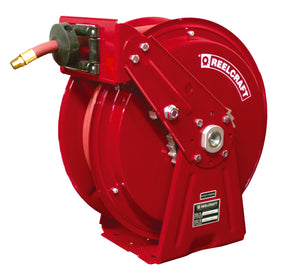

Hose Reel, 1/2 X 50ft
- Reinforced Steel – Steel guide arm and dual pedestal base are stamped with ribs and gussets to insure maximum strength and lightest possible weight. The interlocking base eliminated the need for welds increasing the strength while utilizing fewer parts.
- Superior Latch Spring Design – the torsions style latch spring life far exceeds that of conventional coil springs
- Full Flow Stress Free Swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The swivel rides on a through shaft offering unparalled support and strength.
- Long Life Drive Spring – Declutching arbor eliminates reverse spring winding, and torsions latch spring is virtually unbreakable. High quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
Manufacturer: Reelcraft
Country of Origin Code: US
UPC: 699567012221
Rating: 300 psi
Hose ID: 1/2 inch
Hose OD: 0.750
Length Capacity: 50 feet
Outlet: 1/2 (M)NPTF
Inlet: 1/2 (F)NPTF
Max Temp F: 150 deg F
Reelcraft's compact dual pedestal Series DP features an innovative, no-welded, interlocking base. Independent testing to military standards has proven these reels stand up to heavy vibration and won't vibrate apart, which makes them especially strong and ideal for truck-mounted applications. Individually powder coated components offer the maximum protection from premature corrosion.
- Reinforced Steel - Steel guide arm and dual pedestal base are stamped with ribs and gussets to insure maximum strength and lightest possible weight. The interlocking base eliminated the need for welds increasing the strength while utilizing fewer parts.
- Superior Latch Spring Design - the torsions style latch spring life far exceeds that of conventional coil springs
- Full Flow Stress Free Swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The swivel rides on a through shaft offering unparalled support and strength.
- Long Life Drive Spring - Declutching arbor eliminates reverse spring winding, and torsions latch spring is virtually unbreakable. High quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
Harmonized Tariff Code: 8479.89.9899
Country of Origin Code: US
UPC: 699567012221
