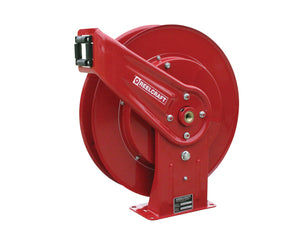

REELCRAFT 7800 OLP 1/2 x 50ft, 500 psi, Air / Water Without Hose

Hose Reel, 1/2 x 50ft

• Reinforced Steel – The steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
• Full Flow Stress Free Swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.
• Long Life Drive Spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
• Quality Finish and Corrosions Resistant – Individually powder coated components offer the maximum protection from premature corrosion.

Manufacturer: Reelcraft
Country of Origin Code: US
UPC: 699567001195

Rating: 500 psi
Hose ID: 1/2 inch
Hose OD: 0.750
Length Capacity: 50 feet
Inlet: 1/2 (F)NPTF

Max Temp F: 150 deg F

Series 7000 is very robust and ideal for the most demanding applications. The reel's base and guide arm are formed from high-grade steel engineered with structural forms and gussets to yield the greatest amount of strength. The standard low pressure hose is for air or water service only. The basic reel without hose can be used for air, water or oil. Guide arm adjusts to three positions.

• Reinforced Steel - The steel guide arm and base are stamped with ribs and gussets to insure maximum strength and lightest possible weight
• Full Flow Stress Free Swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.
• Long Life Drive Spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
• Quality Finish and Corrosions Resistant - Individually powder coated components offer the maximum protection from premature corrosion.

Harmonized Tariff Code: 8479.89.9899
Country of Origin Code: US
UPC: 699567001195
