ADDITIONAL INFORMATION:

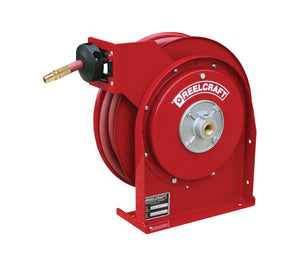

Hose Reel, 1/4 x 35ft
- Reinforced Steel – The robotically welded steel base offers maximum strength and consistent quality. All steel components are powder coated for maximum corrosion resistance
- Full Flow Stress Free Swivel design – The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.
- Long Life Drive Spring – Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
- Ratchet Latch – The latch is the traditional style with torsion spring.
Manufacturer: Reelcraft
Country of Origin Code: US
UPC: 699567009184
Rating: 300 psi
Hose ID: 1/4 inch
Hose OD: 0.475
Length Capacity: 35 feet
Outlet: 1/4 (M)NPTF
Inlet: 3/8 (F)NPTF
Max Temp F: 150 deg F
Series 4000, 5000, and 5005 reels are all-steel construction and compact for a wide range of applications with critical space requirements. A full flow shaft and swivel assures maximum product delivery. Guide arm adjusts to two positions.
- Reinforced Steel - The robotically welded steel base offers maximum strength and consistent quality. All steel components are powder coated for maximum corrosion resistance
- Full Flow Stress Free Swivel design - The full flow swivel combines the highest grade seal design and materials with bearing areas to insure maximum service life. The hose is plumbed into the base to eliminate the risk of undue stress on the swivel.
- Long Life Drive Spring - Declutching arbor virtually eliminates possibility of spring damage due to reverse winding. Only the highest quality spring steel is used and conditioned to insure there are no imperfections offering maximum service life.
- Ratchet Latch - The latch is the traditional style with torsion spring.
Harmonized Tariff Code: 8479.89.9899
Country of Origin Code: US
UPC: 699567009184
