ADDITIONAL INFORMATION:
Heavy duty truck, heavy construction and agricultural equipment maintenance garages.
- U.S. PATENT NUMBER: 7,055,801 B2
- Chromed ram and dust seals prevent hydraulic contamination.
- Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard.
- Air pump models can also be operated manually.

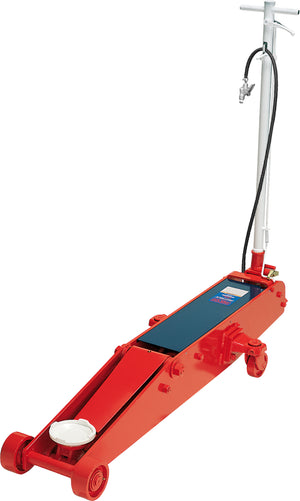

- Includes the FASTJACK® feature which raises the jack’s lifting saddle to the load with one pump of the “T” handle.
- Locking release lever secures handle in the vertical, 45 degree or horizontal position to lower the load on all models.
|
Low Lift Height |
6.125" |
|
High Lift Height |
27.25" |
|
Length |
68.5" |
|
Width |
21" |
|
Shipping Weight |
466 lbs. |
|
|
|
