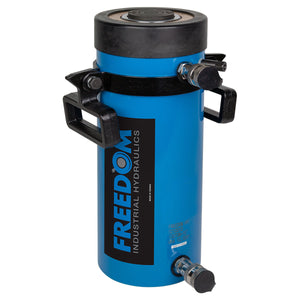

| Capacity (tons) |
100 |
. |
| Stroke (in.) |
10.00 |
. |
| Model # |
SD10010 |
. |
| Cylinder Effective Area (in.2) |
20.57 |
. |
| Oil Capacity (in.3) |
205.7 |
. |
| Collapsed Height (in.) |
18.04 |
(A) |
| Extended Height (in.) |
28.04 |
(B) |
| Outside Diameter (in.) |
7.01 |
(C) |
| Cylinder Bore Dia. (in.) |
5.12 |
(D) |
| Plunger Diameter (in.) |
3.74 |
(E) |
| Base to Coupler Port (in.) |
1.5 |
(F) |
| Saddle Distance above Cyl. (in.) |
0.24 |
(G) |
| Piston Internal Thread (in.) |
– |
(H) |
| Piston Thread Length (in.) |
0.47 |
(I) |
| . |
. |
. |
| Base Mounting Holes |
-5.51 |
. |
| Bolt Circle (in.) |
5.51 |
(J) |
| Thread |
3/4″-10UNC |
(K) |
| Thread Depth (in.) |
1.06 |
(L) |
| . |
. |
. |
| Collar Thread (in.) |
6 7/8″-12UNC |
(M) |
| Collar Thread Length (in.) |
2.01 |
(N) |
| Saddle Diameter (in.) |
2.95 |
(O) |
| Weight (lbs.) |
182.76 |
