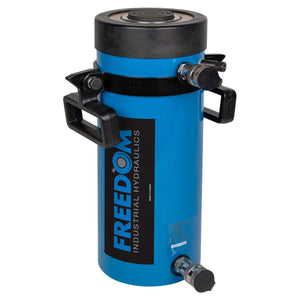

Freedom Hydraulics 100 Ton Double Acting Cylinder, 6.00" Stroke - SD1006

Name: Freedom Hydraulics 100 Ton Double Acting Cylinder, 6.00" Stroke - SD1006
Brand: Freedom Hydraulics
SKU: SD1006
Price: 2760.61 USD
Availability: InStock

by Freedom Hydraulics

$2,760.61 - $2,760.61

$2,760.61

$2,760.61 - $2,760.61

$2,760.61

Description

Ideal for push and pull applications
Ideal for applications requiring rapid retraction
Upper and lower bronze bearings for minimal wear of
cylinder rod and maximizing lifetime of cylinder
Industrial grade steel construction will withstand
even the most demanding applications
Chrome plated piston rod eliminates corrosion and rust
Built in safety valve prevents over-pressurization
when retracting cylinder
3/8” NPTF female couplers and dust caps on all models

Categories: Cylinders, Double Acting Cylinders, 100 Ton Capacity

Capacity (tons)	100	.
Stroke (in.)	6.63	.
Model #	SD1006	.
Cylinder Effective Area (in.2)	20.57	.
Oil Capacity (in.3)	136.4	.
Collapsed Height (in.)	14.63	(A)
Extended Height (in.)	21.26	(B)
Outside Diameter (in.)	7.01	(C)
Cylinder Bore Dia. (in.)	5.12	(D)
Plunger Diameter (in.)	3.74	(E)
Base to Coupler Port (in.)	1.5	(F)
Saddle Distance above Cyl. (in.)	0.24	(G)
Piston Internal Thread (in.)	–	(H)
Piston Thread Length (in.)	0.47	(I)
.	.	.
Base Mounting Holes	-5.51	.
Bolt Circle (in.)	5.51	(J)
Thread	3/4″-10UNC	(K)
Thread Depth (in.)	1.06	(L)
.	.	.
Collar Thread (in.)	6 7/8″-12UNC	(M)
Collar Thread Length (in.)	2.01	(N)
Saddle Diameter (in.)	2.95	(O)
Weight (lbs.)	153.04
