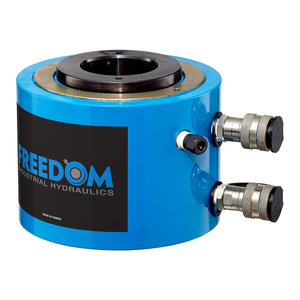

Freedom Hydraulics 100 Ton Double Acting Hollow Hole Cylinder, 1.5" Stroke - SHD1001

Name: Freedom Hydraulics 100 Ton Double Acting Hollow Hole Cylinder, 1.5" Stroke - SHD1001
Brand: Freedom Hydraulics
SKU: SHD1001
Price: 4241.86 USD
Availability: InStock

SKU SHD1001

$4,241.86 - $4,241.86

$4,241.86

$4,241.86 - $4,241.86

$4,241.86

Quantity

Description

Hollow Hole design allows for both push and pull applications
Chrome plated piston rod eliminates corrosion and rust
Dual wiper seals keep out contamination and debris
Double acting for fast retraction
Collar threads on select models for easy fixturing
3/8” NPTF female coupler and dust cap on all models

Categories: Cylinders, Hollow Hole Double Acting, 100 Ton Capacity, Hollow Hole Cylinders

Rated Capacity (Cap.)	100	.
Max. Capacity (Push)	110.0	.
Max. Capacity (Pull)	63.0	.
Stroke (in.)	1.57	.
Model #	SHD1001	.
Cylinder Effective Area (in.₂) Adv.	22.14	.
Cylinder Effective Area (in.₂) Ret.	12.56	.
Oil Capacity (in.₃) Adv.	33.2	.
Oil Capacity (in.₃) Ret.	18.8	.
Collapsed Height (in.)	6.6	(A)
Extended Height (in.)	8.17	(B)
Outside Diameter (in.)	8.38	(C)
Cylinder Bore Dia. (in.)	6.50	(D)
Plunger Diameter (in.)	5.11	(E)
Center Hole Dia.	3.13	(F)
Base to Coupler Port.	1.41	(G)
Saddle Distance above Cyl. (in.)	0.50	(H)
Piston Internal Thread (in.)	4/16″-16	(I)
Piston Thread Length (in.)	0.75	(J)
.	.	.
		.
Bolt Bolt Circle (in.)	7.00	(K)
Thread	5/8″-11	(L)
Thread Depth (in.)	0.74	(M)
.	.	.
Collar Thread (in.)	–	(N)
Collar Thread Length (in.)	–	(O)
Saddle Diameter (in.)	5.11	(P)
Weight (lbs.)	81.9
