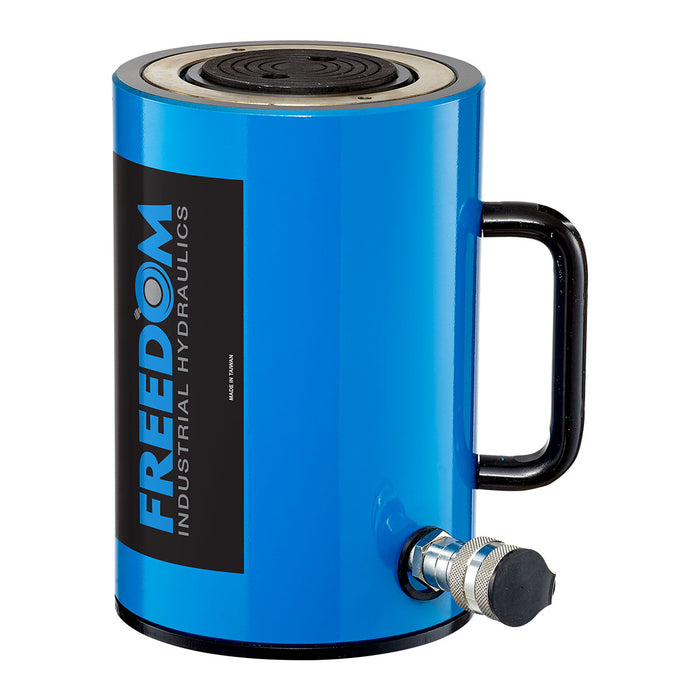

Freedom Hydraulics 100 Ton Single Acting Aluminum Cylinder, 4.00" Stroke - SA1004

Name: Freedom Hydraulics 100 Ton Single Acting Aluminum Cylinder, 4.00" Stroke - SA1004
Brand: Freedom Hydraulics
SKU: SA1004
Price: 3053.0 USD
Availability: InStock

SKU SA1004

$3,053.00 - $3,053.00

$3,053.00

$3,053.00 - $3,053.00

$3,053.00

Quantity

Description

Lightweight aluminum body allows for easy carrying and positioning
Plunger wiper seal keeps out contamination and debris
Bearing reduces side loading issues and increases life
Single acting spring load return
Steel base plate protects the cylinder base
Stop ring prevents piston from being overextended
3/8” NPTF female coupler and dust cap on all models

Categories: Cylinders, Aluminum Spring Return Cylinders, 100 Ton Capacity

Capacity (tons)	100	.
Stroke (in.)	4.01	.
Model #	SA1004	.
Cylinder Effective Area (in.2)	4 22	.
Oil Capacity (in.3)	89	.

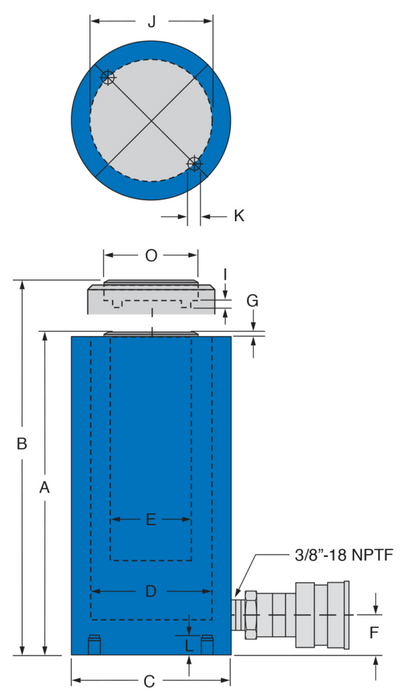

Collapsed Height (in.)	10.7	(A)
Extended Height (in.)	14.71	(B)
Outside Diameter (in.)	7.09	(C)
Cylinder Bore Dia. (in.)	5.31	(D)
Plunger Diameter (in.)	4.33	(E)
Base to Coupler Port (in.)	1.58	(F)
Saddle Distance above Cyl. (in.)	0.12	(G)
Piston Thread Length (in.)	0.59	(I)
Base Mounting Holes		.
Bolt Bolt Circle (in.)	6.3	(J)
Thread	M8 x P1.25	(K)
Thread Depth (in.)	0.47	(L)
Saddle Diameter (in.)	1.97	(O)
Weight (lbs.)	58.64
