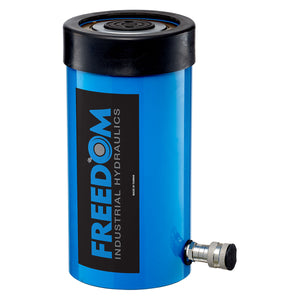

Capacity (tons) |
100 |
. |
Stroke (in.) |
10.12 |
. |
Model # |
S10010 |
. |
Cylinder Effective Area (in.2) |
20.57 |
. |
Oil Capacity (in.3) |
208.2 |
. |
Collapsed Height (in.) |
18.05 |
(A) |
Extended Height (in.) |
28.17 |
(B) |
Outside Diameter (in.) |
6.99 |
(C) |
Cylinder Bore Dia. (in.) |
5.12 |
(D) |
Plunger Diameter (in.) |
4.13 |
(E) |
Base to Coupler Port (in.) |
1.57 |
(F) |
Saddle Distance above Cyl. (in.) |
0.12 |
(G) |
Piston Internal Thread (in.) |
– |
(H) |
Piston Thread Length (in.) |
0.59 |
(I) |
. |
. |
. |
Base Mounting Holes |
. |
. |
Bolt Circle (in.) |
5.5 |
(J) |
Thread (in.) |
3/4″-10UNC |
(K) |
Thread Depth (in.) |
1 |
(L) |
. |
. |
. |
Collar Thread (in.) |
6 7/8″-12UNC |
(M) |
Collar Thread Length (in.) |
1.75 |
(N) |
Saddle Diameter (in.) |
2.76 |
(O) |
Weight (lbs.) |
176.2 |
