| Capacity (tons) |
100 |
. |
| Stroke (in.) |
2.08 |
. |
| Model # |

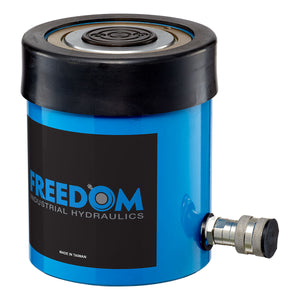

S1002 |
. |
| Cylinder Effective Area (in.2) |
20.57 |
. |
| Oil Capacity (in.3) |
42.8 |
. |
| Collapsed Height (in.) |
8.66 |
(A) |
| Extended Height (in.) |
10.74 |
(B) |
| Outside Diameter (in.) |
6.99 |
(C) |
| Cylinder Bore Dia. (in.) |
5.12 |
(D) |
| Plunger Diameter (in.) |
4.13 |
(E) |
| Base to Coupler Port (in.) |
1.57 |
(F) |
| Saddle Distance above Cyl. (in.) |
0.12 |
(G) |
| Piston Internal Thread (in.) |
– |
(H) |
| Piston Thread Length (in.) |
0.59 |
(I) |
| . |
. |
. |
| Base Mounting Holes |
. |
. |
| Bolt Circle (in.) |
– |
(J) |
| Thread (in.) |
– |
(K) |
| Thread Depth (in.) |
– |
(L) |
| . |
. |
. |
| Collar Thread (in.) |
6 7/8″-12UNC |
(M) |
| Collar Thread Length (in.) |
1.75 |
(N) |
| Saddle Diameter (in.) |
2.76 |
(O) |
| Weight (lbs.) |
99.78 |
