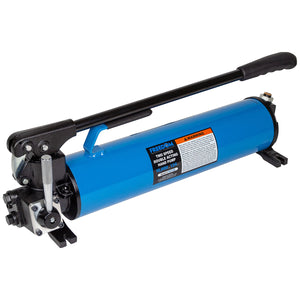

Freedom Hydraulics 134 IN3 10,000 Psi Two Speed Hand Pump - Double Acting, 4 Way 3 Position Valve - PH134D

Name: Freedom Hydraulics 134 IN3 10,000 Psi Two Speed Hand Pump - Double Acting, 4 Way 3 Position Valve - PH134D
Brand: Freedom Hydraulics
SKU: PH134D
Price: 934.37 USD
Availability: InStock

by Freedom Hydraulics

$834.26 - $834.26

$834.26

$934.37

$934.37 - $934.37

$934.37

Description

High strength metal reservoir eliminates reservoir cracking
Shop air pressure range of 40-170 psi
Ideal for frame machines and other OEM equipment
Internal pressure relief valve protects from overloading
Maximum working pressure at 10,000 psi

Categories: Hand Pumps, Double Acting Hand Pumps, Pumps

Model #	PH134D
Usable Oil Capacity (in³/min)	122
Valve Function	Double Acting
Pump Type	2 Speed
Pressure Rating	.
1st Stage (psi)	400
2nd Stage (psi)	10000
Oil Displacement Per Stroke	.
1st Stage (in³)	2.39
2nd Stage (in³)	0.17
Maximum Operating Force (lbs.)	81
Piston Stroke	0.98
Oil Outlet Port	3/8″-18NPTF
Weight (lbs.)	31.97
