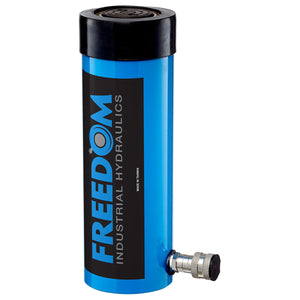

| Capacity (tons) |
15 |
. |
| Stroke (in.) |
3.81 |
. |
| Model # |
S154 |
. |
| Cylinder Effective Area (in.2) |
3.04 |
. |
| Oil Capacity (in.3) |
11.6 |
. |
| Collapsed Height (in.) |
8 |
(A) |
| Extended Height (in.) |
11.81 |
(B) |
| Outside Diameter (in.) |
2.75 |
(C) |
| Cylinder Bore Dia. (in.) |
1.97 |
(D) |
| Plunger Diameter (in.) |
1.57 |
(E) |
| Base to Coupler Port (in.) |
1.02 |
(F) |
| Saddle Distance above Cyl. (in.) |
0.37 |
(G) |
| Piston Internal Thread (in.) |
1″-8UNC |
(H) |
| Piston Thread Length (in.) |
1 |
(I) |
| . |
. |
. |
| Base Mounting Holes |
. |
. |
| Bolt Circle (in.) |
1.88 |
(J) |
| Thread (in.) |
3/8″-16UNC |
(K) |
| Thread Depth (in.) |
0.51 |
(L) |
| . |
. |
. |
| Collar Thread (in.) |
2 3/4″-16UNC |
(M) |
| Collar Thread Length (in.) |
1.18 |
(N) |
| Saddle Diameter (in.) |
1.5 |
(O) |
| Weight (lbs.) |
11.80 |
