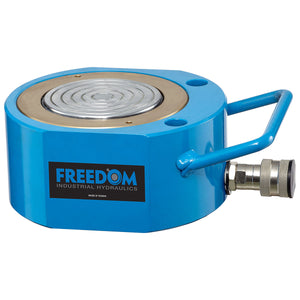

Freedom Hydraulics 150 Ton Flat Body, 0.63" Stroke - SF150

Name: Freedom Hydraulics 150 Ton Flat Body, 0.63" Stroke - SF150
Brand: Freedom Hydraulics
SKU: SF150
Price: 1810.36 USD
Availability: InStock

SKU:SF150

Vendor

Brand: Freedom Hydraulics

Sale price

$1,810.36

ADDITIONAL INFORMATION:

Low collapsed height for applications that
require minimal clearance in confined spaces
Plunger wiper seal keeps out contamination and debris
Industrial grade spring for increased spring performance
Industrial grade steel construction withstands
even the most demanding of applications
Chrome plated piston rod eliminates corrosion and rust
3/8” NPTF female coupler and dust cap on all models

Categories: Cylinders, Flat Body Cylinders

Rated Capacity (Cap.)	150	.
Stroke (in.)	0.55	.
Model #	SF150	.
Cylinder Effective Area (in.₂)	31.16	.
Oil Capacity (in.₃)	17.1	.
Collapsed Height (in.)	3.99	(A)
Extended Height (in.)	4.54	(B)
Outside Diameter (in.)	8.5	(C)
Cylinder Bore Dia. (in.)	6.3	(D)
Plunger Diameter (in.)	4.53	(E)
Base to Coupler Port	0.94	(F)
Saddle Diameter	4.53	(P)
Weight (lbs.)	61.49
