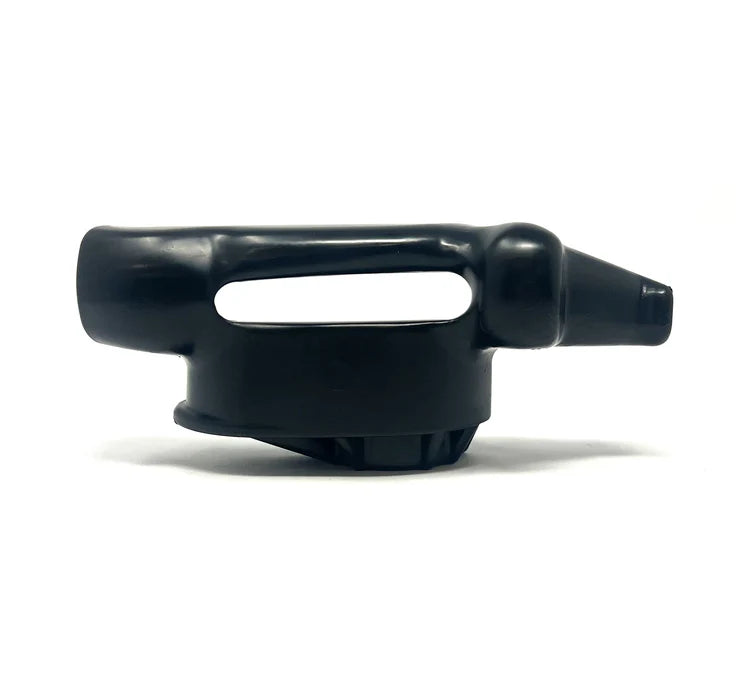

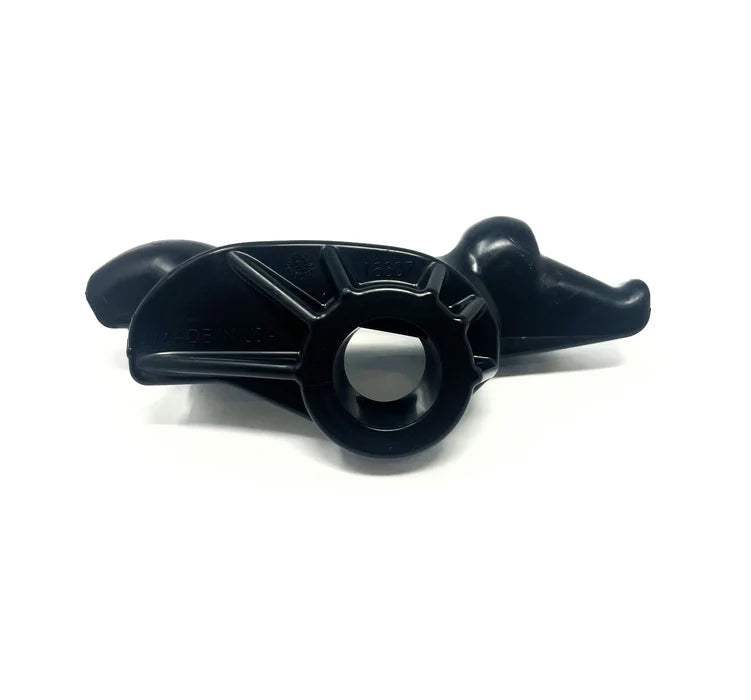

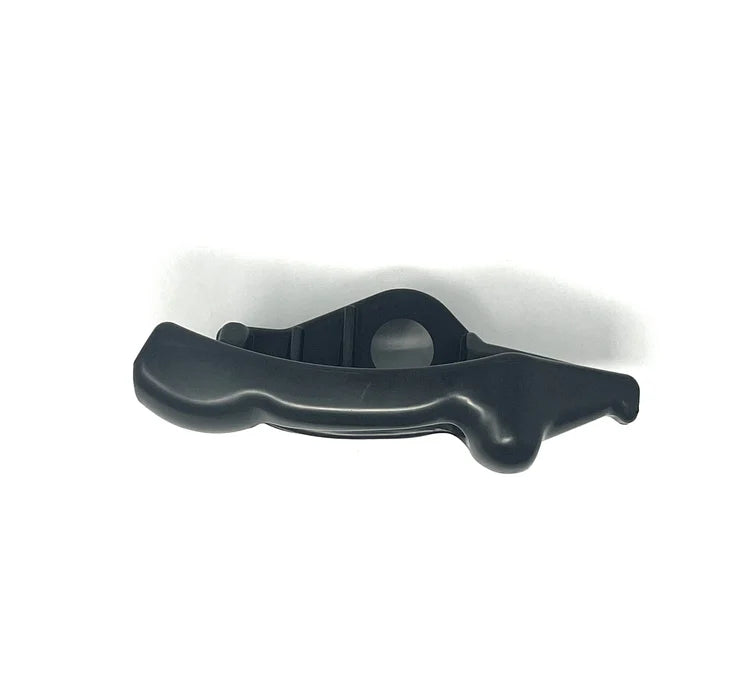

MT-RSR Coats Nylon M/D Head with Hardware USA MADE 18306USA

Replacement for most Coats brand tire changers.

Fits the following tire changer brands:

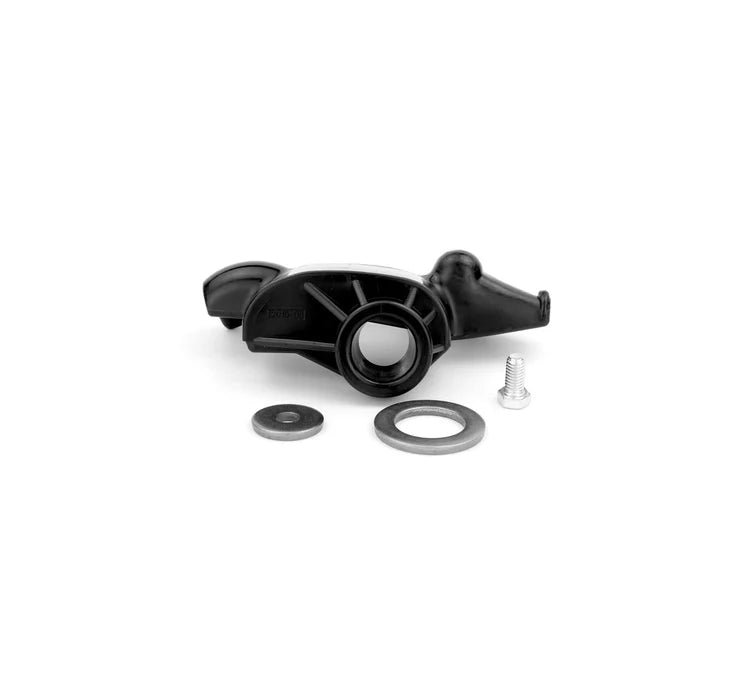

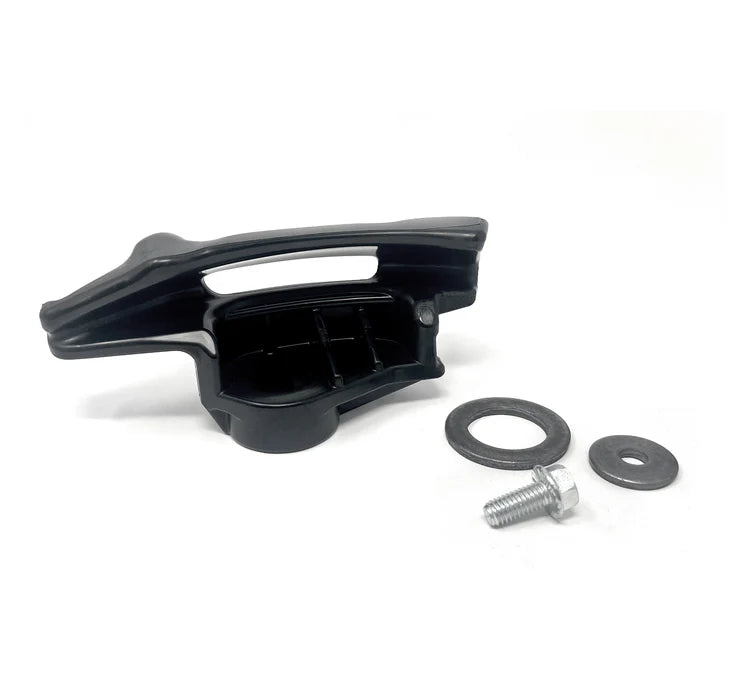

Fits Coats models that have a tapered stud (the part that the shoe mounts on) on the bottom of the shaft. Includes mounting bolt and washers. Not for early models that have a straight stud.

Black composite.

Should fit the following Coats models:

7050AX, 7050EX, 7060AX, 7060EX, 7065AX, 7065EX, 7665AX, 7665EX.
GTS50, GTS60, GTS70.
RC-45A, RC-45E.
50XAF1,50XAF2, 50XAF3, 50XAH1, 50XAH2, 50XAH3, 50XEF1, 50XEF2, 50XEF3, 50XEH1, 50XEH2, 50XEH3.
70XAF1, 70XAF2, 70XAF3, 70XAH1, 70XAH2, 70XAH3, 70XEF1, 70XEF2, 70XEF3, 70XEH1, 70XEH2, 70XEH3.
Baseline models: 200, 300, 500
5030A, 5030E, 5035A, 5035E, 5040A, 5040E, 5050A, 5050E, 5060A, 5060AX, 5060E, 5060EX, 5065A, 5065AX, 5065E, 5065EX, 5070A, 5070E.
6050A, 6050E, 6050AX, 6050EX, 6060A, 6060E, 6060AX, 6060EX, 6065A, 6065E, 6065AX, 6065EX.

Models in RED could have had a Mounting Bar with a STRAIGHT STUD. Remove the existing Head and confirm a TAPERED STUD.

MT-RSR Insights:

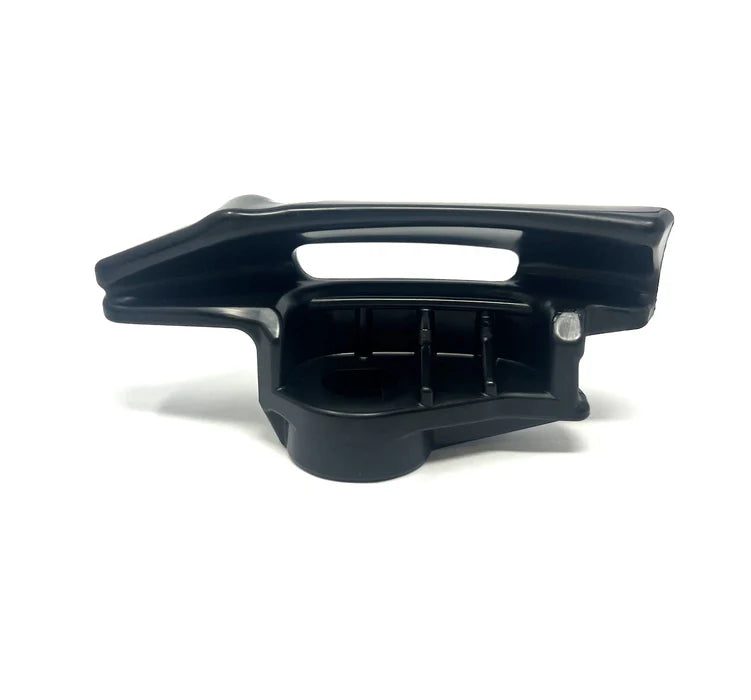

This durable but flexible nylon material helps to prevent the head from scratching rims while changing tires. When selecting a head for your Coats tire changer, reference the second picture shown on this page. The stub sticking out of the shaft that holds the head will be either tapered (smaller on the bottom than the top), or it will not be. This head only fits tapered studs.

Also available without hardware as 18307. Available as a steelhead as 1827888.

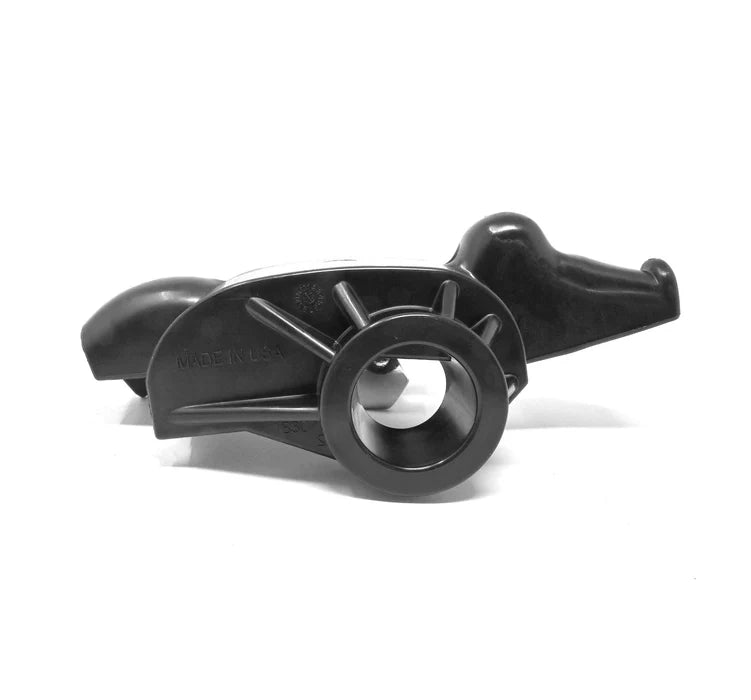

Made in the USA

Interchangeable Part Numbers:

Coats - 8183061, 182960, 8182960, 183061, TC183061, TMRhead, 71216, 71447, 38306
