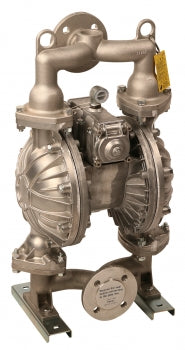

2” double diaphragm Pump 2” double diaphragm Pump with aluminum body, Buna N diaphragm and seals. Pump is rated at up to 160 GPM at 100 PSI, maximum drylift suction capability is 19 ft. and maximum size solid to pass is 5/16” (8 mm). Maximum fluid handling temperature is 180 deg. F. Inlet/Outlet is tapped with 2” NPTF ANSI flange. discharge volume per cycle is 1.12 gal. Shipping weight is 99 lb., dim. 18.63”W x 30.67”H, air inlet fitting is ¾” NPTF and requires up to 180 SCFM air supply. Typical applications include bulk transfer of new and used oil.
