| Rated (Cap.) |
20 |
. |
| Max. (Cap.) |
22.5 |
. |
| Stroke (in.) |
1.94 |
. |

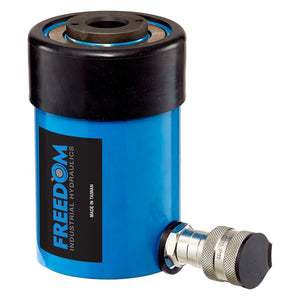

| Model # |
SHS202 |
. |
| Cylinder Effective Area (in.2) |
4.54 |
. |
| Oil Capacity (in.3) |
8.93 |
. |
| Collapsed Height (in.) |
6.13 |
(A) |
| Extended Height (in.) |
8.07 |
(B) |
| Outside Diameter (in.) |
3.88 |
(C) |
| Cylinder Bore Dia. (in.) |
2.87 |
(D) |
| Plunger Diameter (in.) |
2.13 |
(E) |
| Center Hole Dia. |
1.06 |
(F) |
| Base to Coupler Port. |
0.75 |
(G) |
| Saddle Distance above Cyl. (in.) |
0.28 |
(H) |
| Piston Internal Thread (in.) |
1-9/16″-16 |
(I) |
| Piston Thread Length (in.) |
0.75 |
(J) |
| . |
. |
. |
| Base Mounting Holes |
|
. |
| Bolt Circle (in.) |
3.25 |
(K) |
| Thread |
3/8″-16 |
(L) |
| Thread Depth (in.) |
0.39 |
(M) |
| . |
. |
. |
| Collar Thread (in.) |
3-7/8″-12 |
(N) |
| Collar Thread Length (in.) |
1.50 |
(O) |
| Saddle Diameter (in.) |
2.13 |
(P) |
| Weight (lbs.) |
17.6 |
