Samson 2840 Aluminum Pump freeshipping - Empire Lube Equipment
by Samson

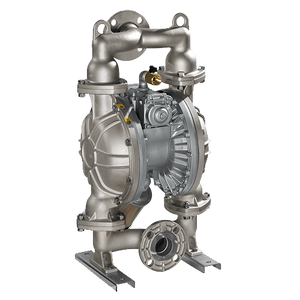

Samson 2840 Aluminum Pump

SKU Samson 2840 - 164 Gal Aluminum
$2,251.79 - $2,251.79
$2,251.79
$2,589.56
$2,589.56 - $2,589.56
$2,589.56

Conventional air operated diaphragm pumps pump the fluid around the outside of the pump and compressed air acts on the inside face of the diaphragms.

Fluids Handled

  • Oils
  • Antifreeze
  • Windshield Wash Solution
  • Hydraulic Fluids
  • Diesel
  • Water
  • Waste Oil & Antifreeze

Pump Pressure Ratio

1:1

Maximum Free Flow Rate

164 gal/min (621 l/min)

Maximum Suction Lift

18'

Minimum Air Pressure

20 psi (1.5 bar)

Maximum Air Pressure

100 psi (7 bar)

Max Size Solid Suspension

5/15"

Air Inlet

1" NPTF

Fluid Outlet

Ansi Flange & 2" NPTF

Fluid Inlet

Ansi Flange & 2" NPTF

Wetted Materials

Aluminum, NBR
