ADDITIONAL INFORMATION:

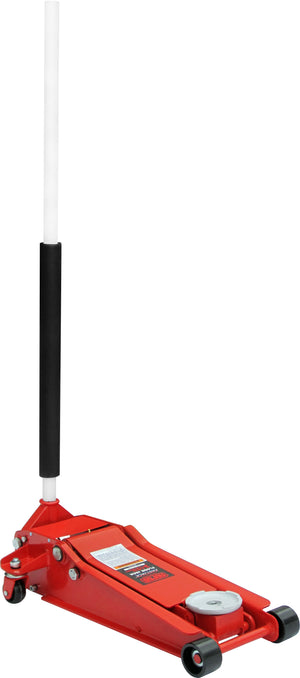

A heavy-duty floor jack designed for a variety of automotive shop uses including the added capacity and maximum lift height required to handle most SUV and 1 Ton+ service trucks.
The features are:
- U.S. Patent No. D683104 & 9,022,356
- Steel hydraulic block construction includes a double pump
piston design that quickly raises the jack to the maximum height - 50" long, two piece handle with knurled hand grip and foam handle sleeve provides:
- Ease of pumping
- Longer reach for positioning under overhang
- Ease for transportation and storage
- Ease of pumping in tight quarters when second handle section is removed - 4" low and 21-3/8" maximum lift heights (without saddle adapter)
- 7" low and 24-3/8" maximum lift heights (with saddle adapter)
- Heavy-duty chassis for added strength and dependability
- Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard.
- Also available is our unique 3" saddle extension adapter (Model 71303). Its patent pending design has been created to quickly lift the load. Since most SUV's and service trucks have a higher low lift height, the increased height of the saddle allows for quicker positioning and quicker lifting of the vehicle. It saves time and effort and increases shop efficiency.
The dimensions are:
| Low Lift Height | 4" |
| High Lift Height | 21.375" |
| Length | 28.5" |
| Width | 14.375" |
| Handle Length | 50.25" |
| Shipping Weight | 106 lbs. |
